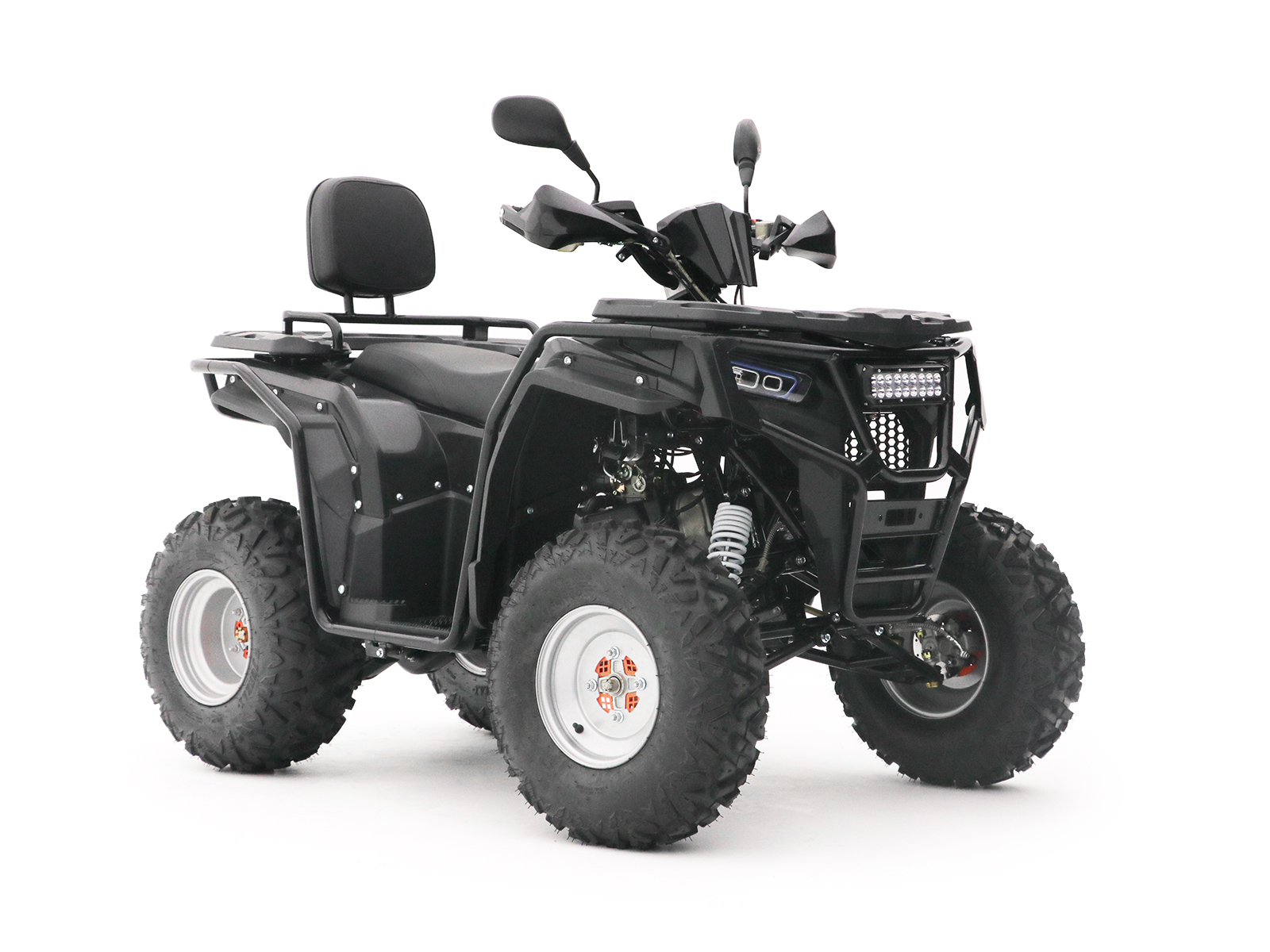

Y125

Color Available

Send Us Inquiry

Specification


Transmission   Auto clutch,1 forward and reverse
Starting System  Electric CDI
Engine Type  125cc
Cooling System  Air-cooled

Max Power[Kw/r/m]  5.3/7500
Max Torque[N.m/r/m]  8.0/5500
Front Brake  Drum brake
Rear Brake  Disc brake
Front Tires  (F)19*7-8
Rear Tires  (R)18*9.5-8
Weight Capacity [kg]  80kgs
Net Weight[kg]  115kgs
Gross Weight[kg]   125kgs
Overall Length [mm]  1420mm
Overall Width [mm]   940mm
Overall Height [mm]  955mm
Carton DimensionsLXWXH[mm]  1200x760x640mm
Seat Height [mm]   720mm
Wheelbase [mm] 960mm
Min Ground Clearance[mm]  250mm
Final Drive  Chain
Ignition Type   CDI
Battery  12v 5Ah


Features

【Powerful & Stable 4 Stroke Air-cooled Engine】
125cc of reliable, electric start 4-stroke fun feed into a gearbox, making this ATV a great choice for those getting started or moving up, and perfectly tuned to the rider starting to hone his or her ATV skills.

【Automatic Clutch Transmission with Reverse 】
You don't have to worry about shifting gears when going forward. Easy to ride and uncomplicated for all ages to ride, with reverse to make backing up easier.

【Bright LED Headlight & Big Tail light enable Safe Night Riding Mode】
The LED headlight is a very unique design that perfectly fit the style and shape of this vehicle. They are very bright and will light your way while driving at night. Tail lights and brake lights are bigger than normal ATVs which will lead your way at backwards.

【Note】
Some assembly required: Assembly for MOST ATVs include Handle bar brackets(c clamps), all 4 wheels, front and rear racks(if included),rear shock and battery.(May differ per model)
