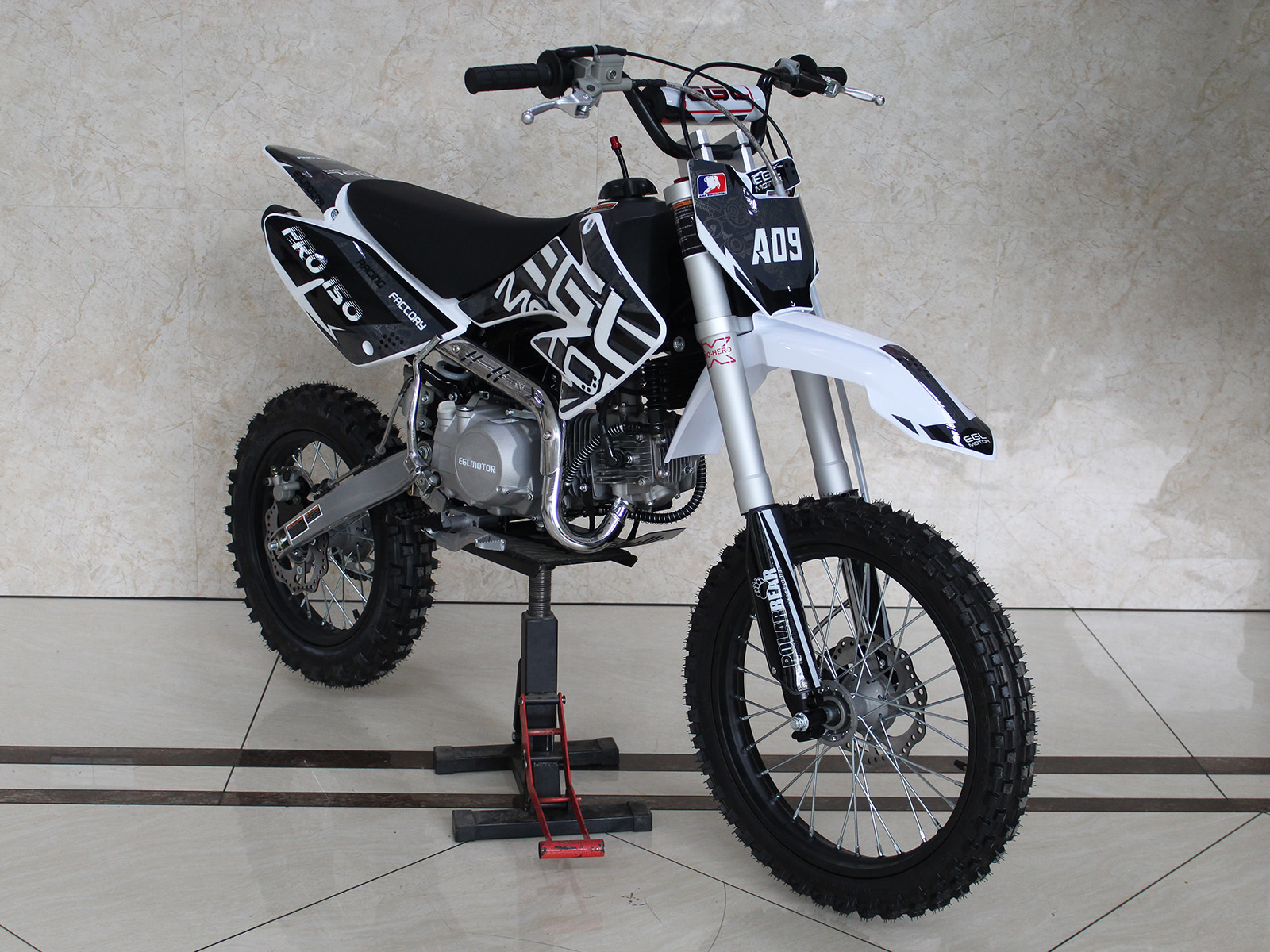

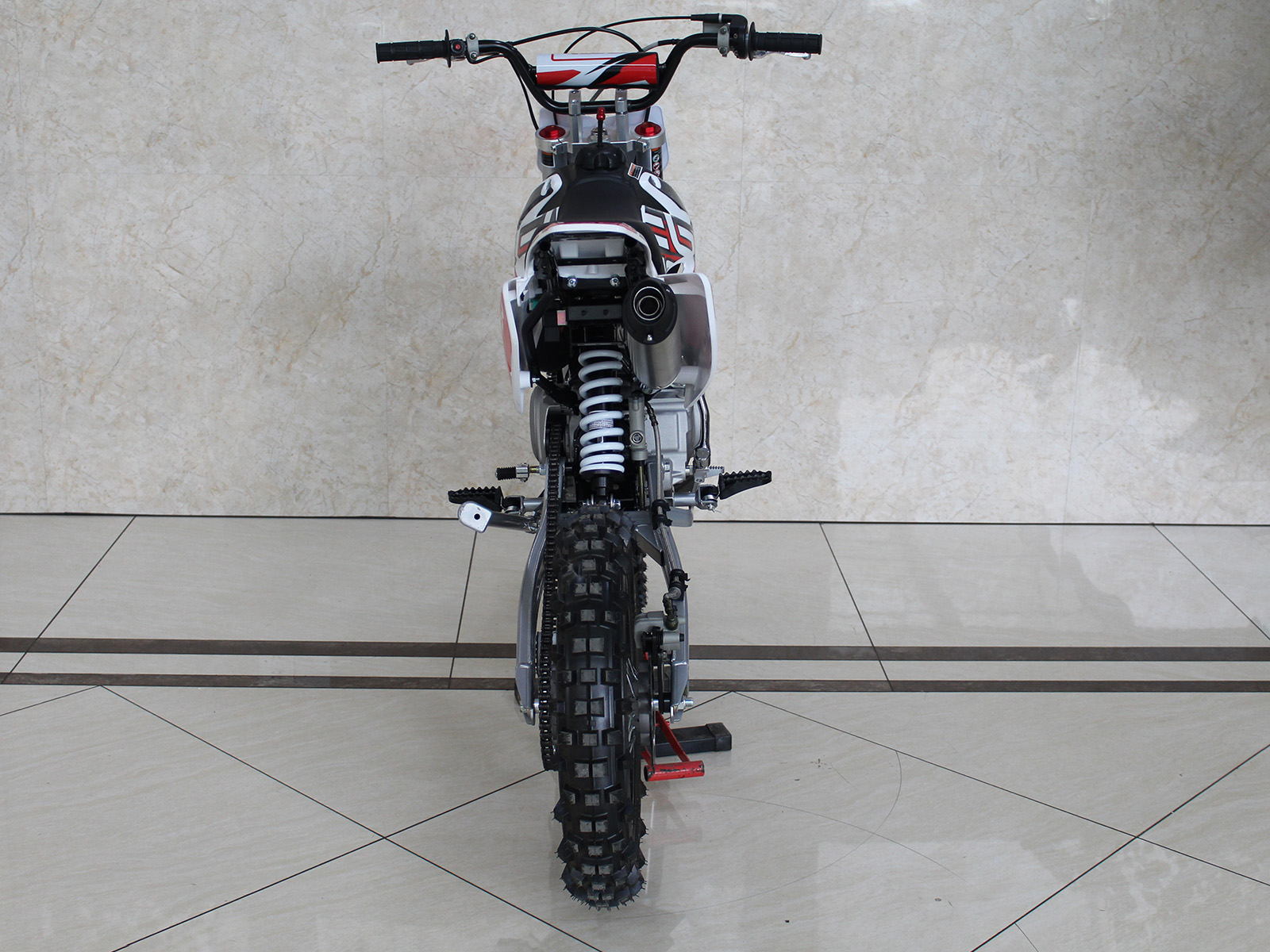

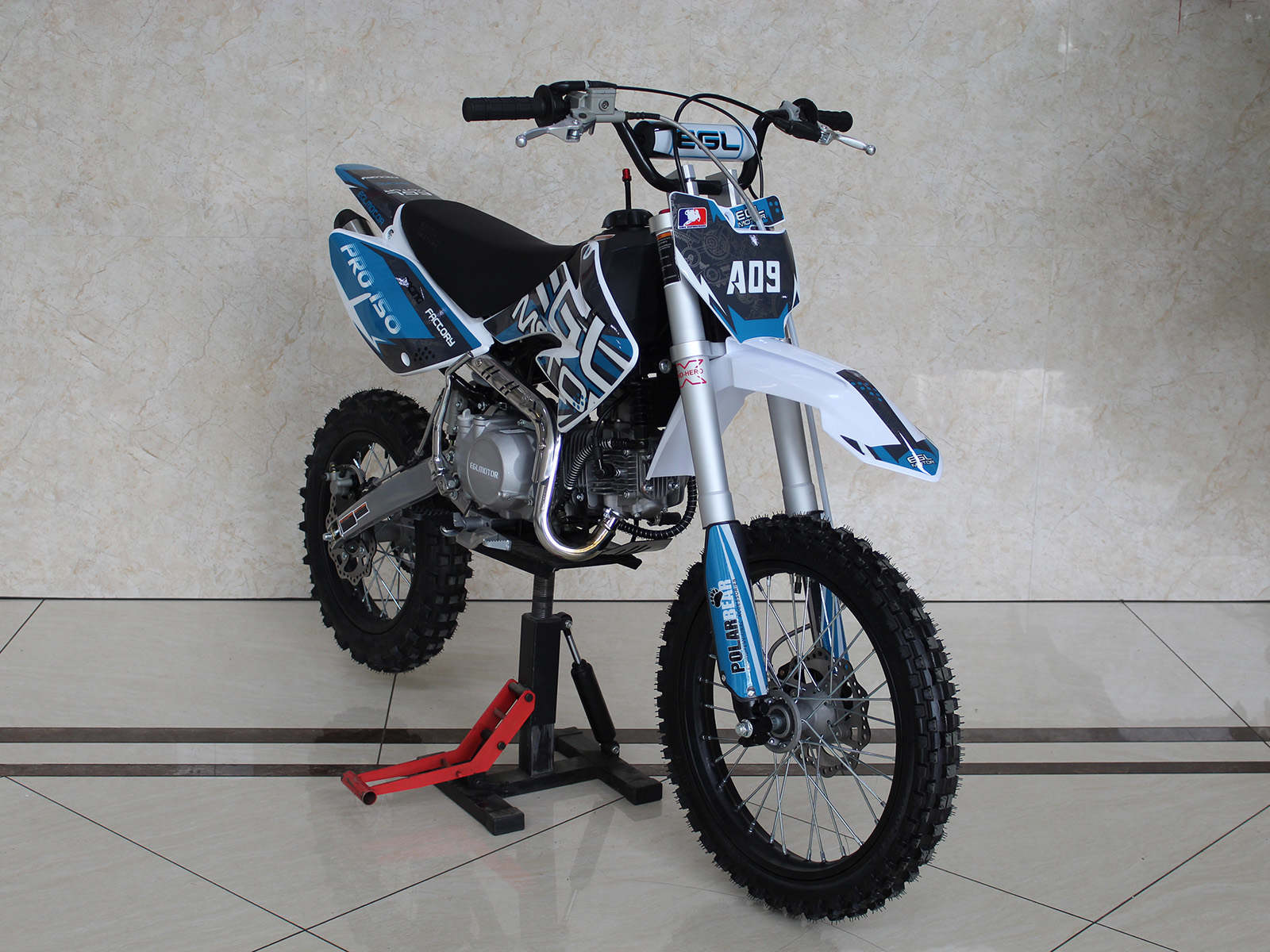

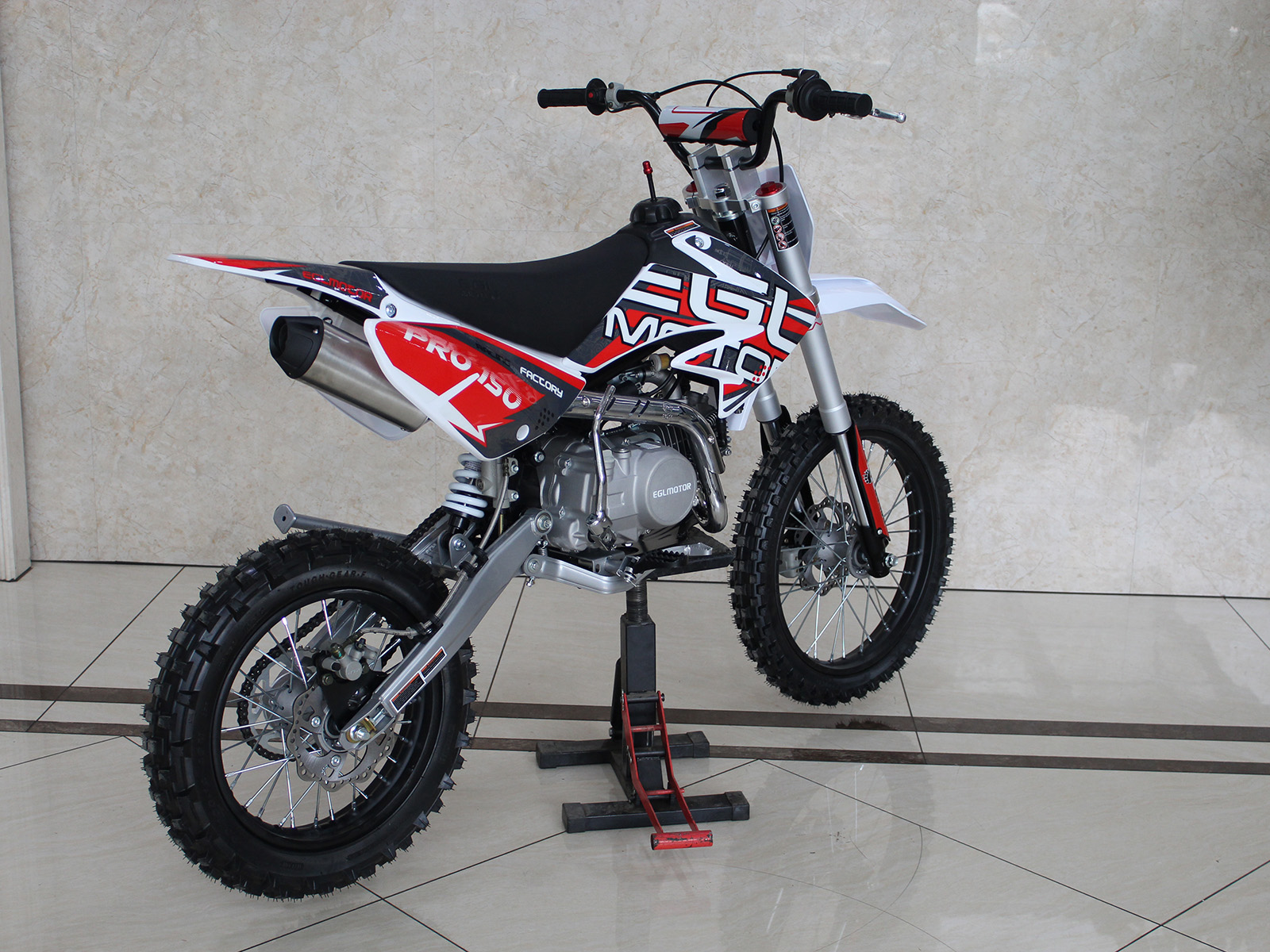

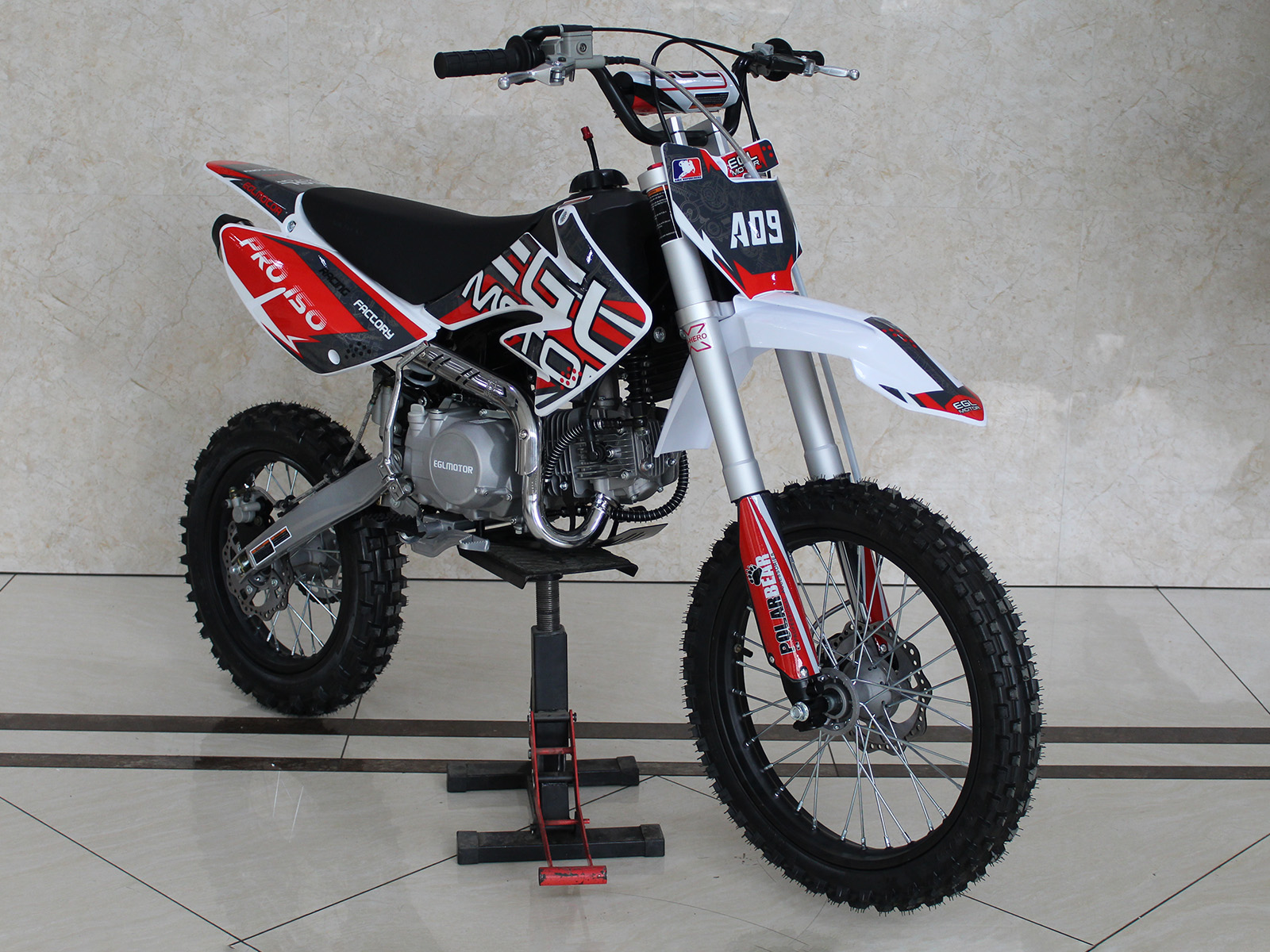

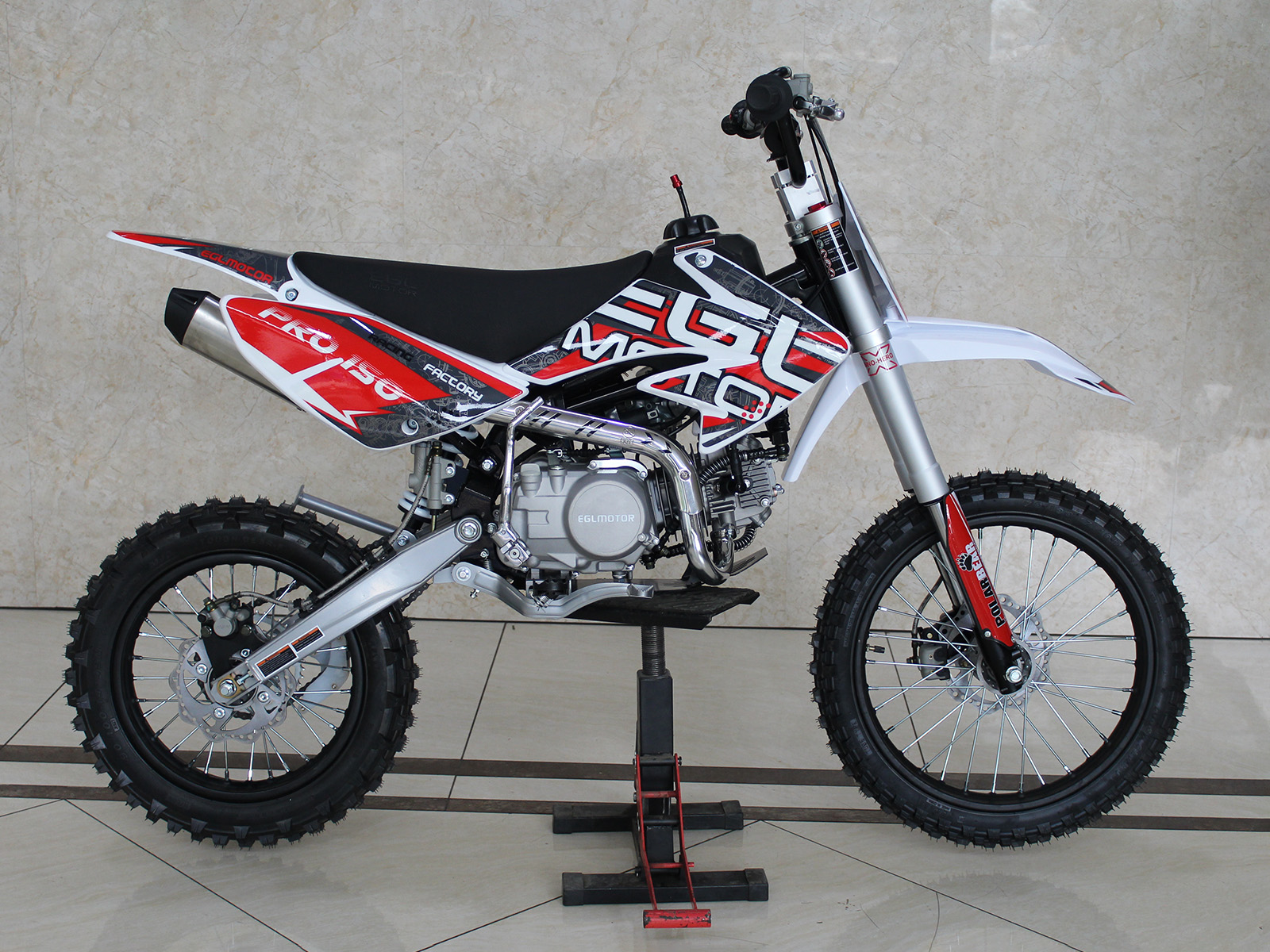

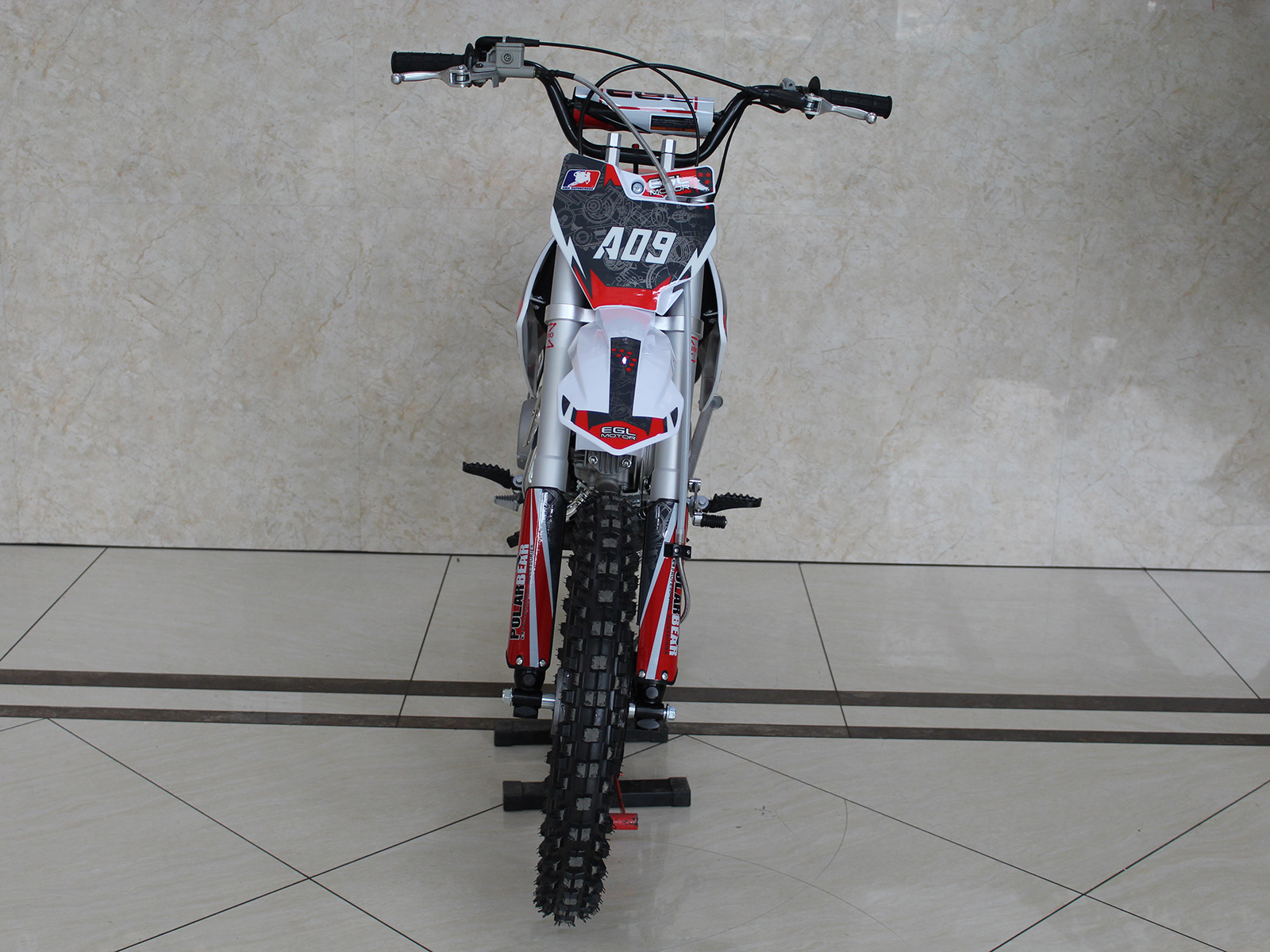

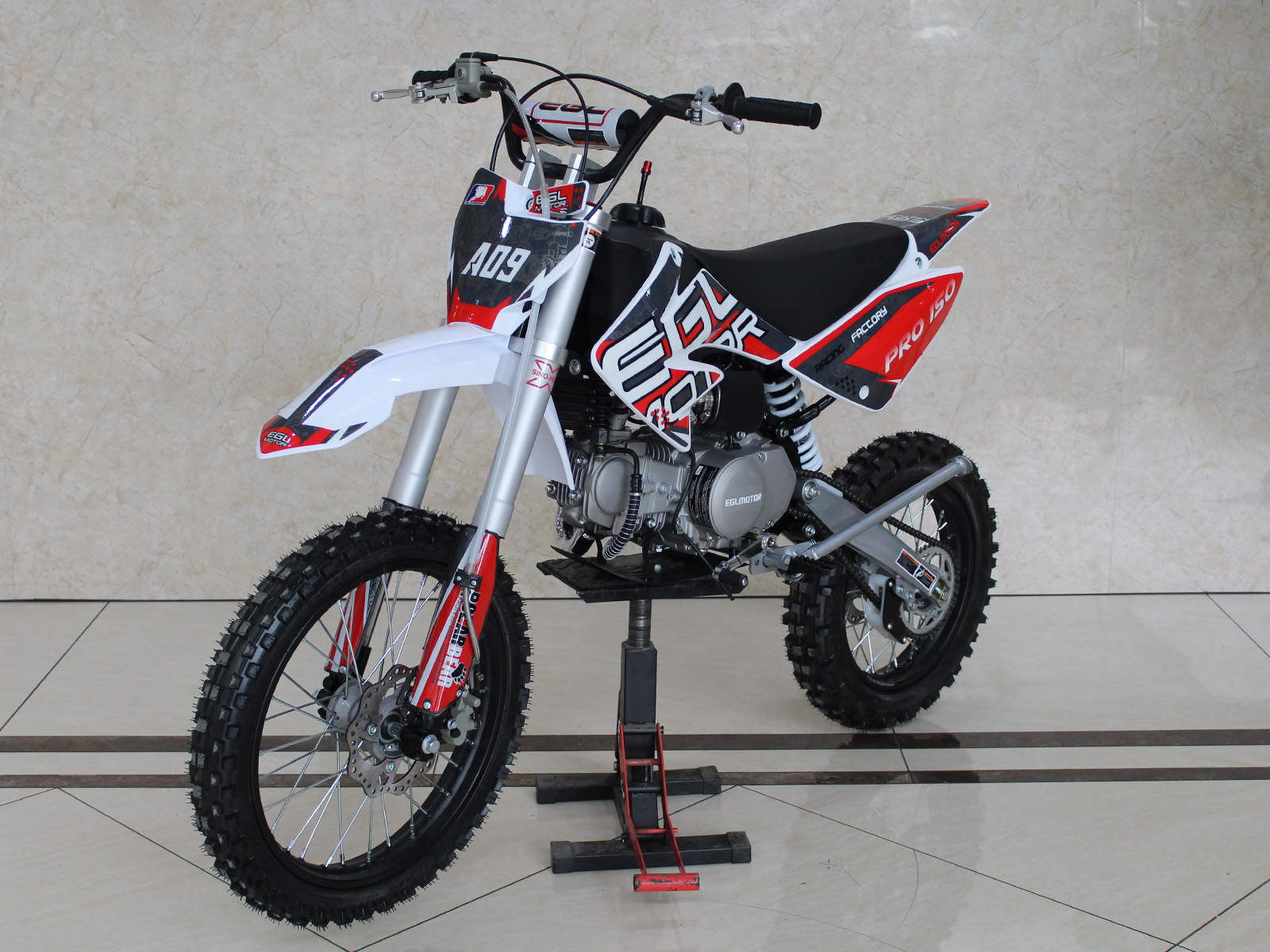

A09-6

Color Available

Send Us Inquiry

Specification

Engine:149cc, 4 stroke
Cylinder Arrangement: Single
Cooling System:Air Cooled
Max Horsepower:12.92HP/8500rpm
Max Torque:10.0N.m/6500rpm
Transmission: Manual 5-Speed
Start System: Kick start
Final Drive: Chain Drive
Ignition: CDI
Max Speed (MPH):45+ (Depending on Riders Weight and Road Conditions)

Frame /Body/ Suspension / Brakes
Front Suspension:Double shocks
Rear Suspension:Single shock
Front Brake: Hydraulic Disc
Rear Brake: Hydraulic Disc
Front Tire: 70/100-19
Rear Tire: 90/100-16

Capacities / Dimensions
Weight Capacity (lbs):265
Net Weight (lbs) : 220
Gross Weight (lbs) : 254
Overall Length:76"
Overall Width:39"
Overall Height:47"
Seat Height:32"
Wheelbase:52"
Ground Clearance: 9.05"
Fuel Capacity (gal): 1.56

Safety / Control
Engine Kill Switch: Yes
Foot Brake: Yes
Tool Kit:Yes

Features

【5-Speed Manual Transmission】
Enhances rider control and engagement, as the manual shifting process requires more skill and attention, resulting in a more immersive riding experience.

【17" Front and 14" Rear big Tires】
Well-suited for off-road adventures, offering improved stability, traction, and performance in demanding conditions.

【Adjustable Rear Mono Shock】
Provides riders with greater flexibility, control, and comfort, making it a popular choice for off-road enthusiasts.

【Some assembly required】
 Assembly for dirt bikes include Handle bar brackets, wheels, brakes, number plate and fender. (May differ per model)
