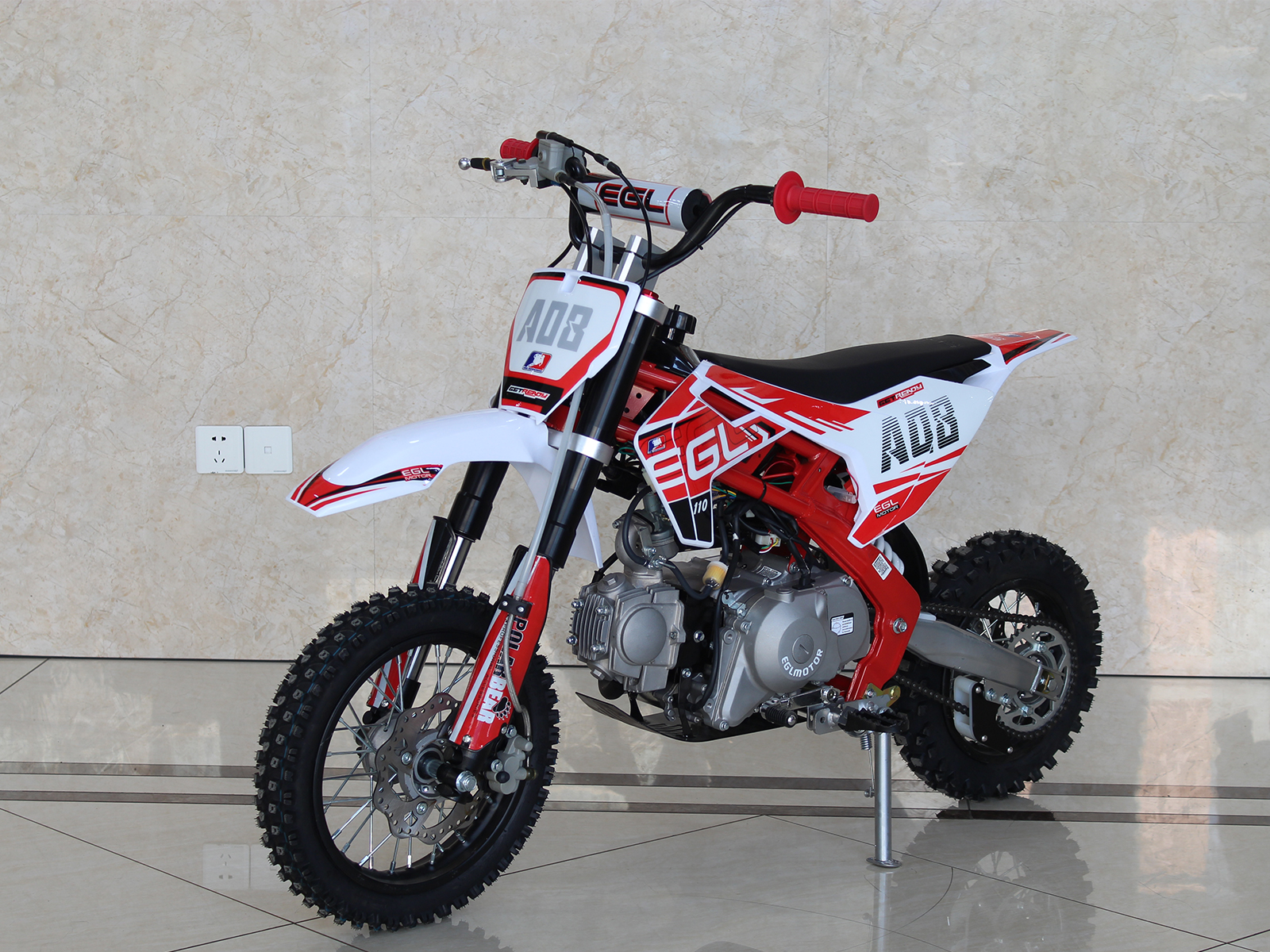

A08

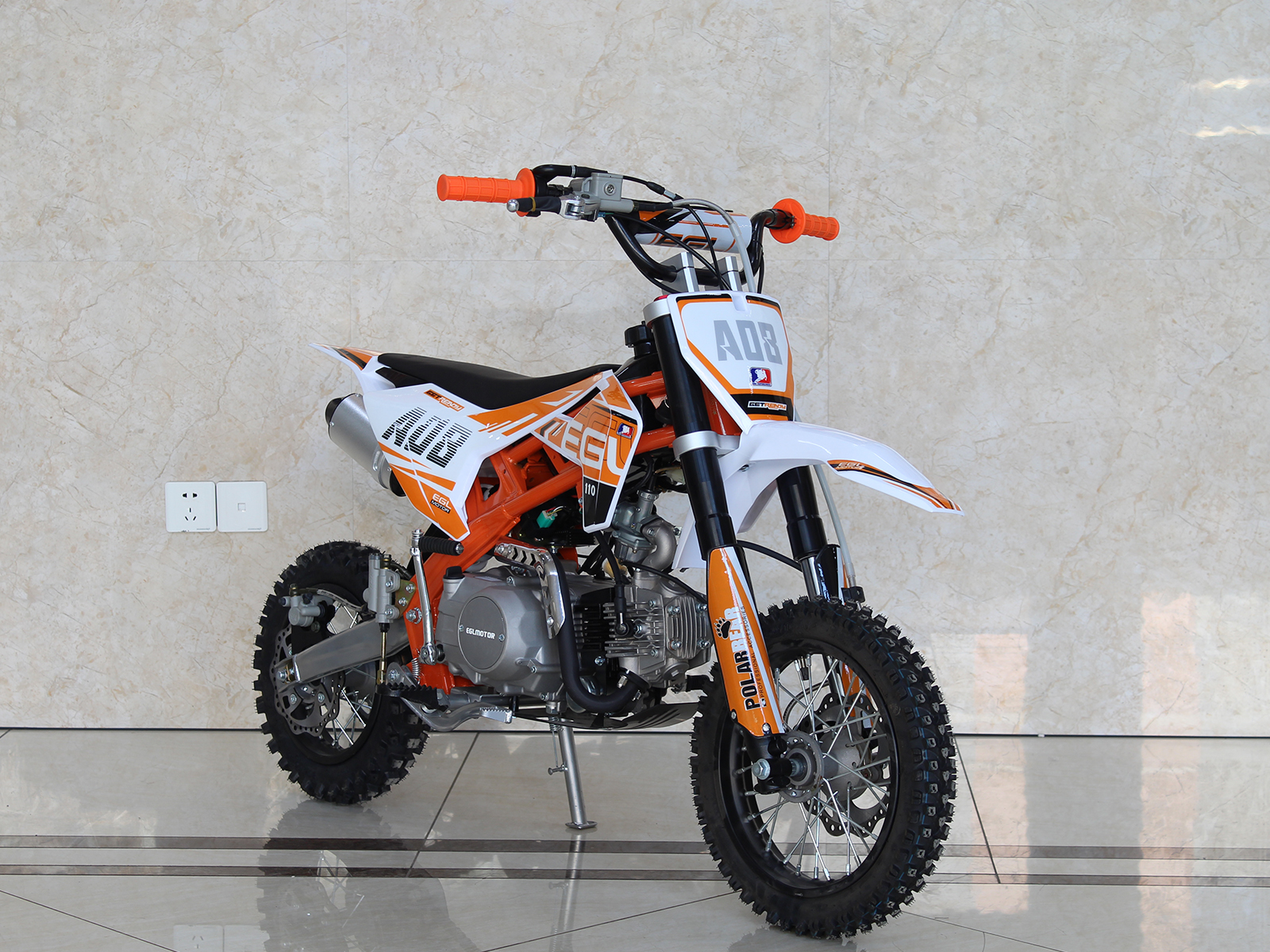

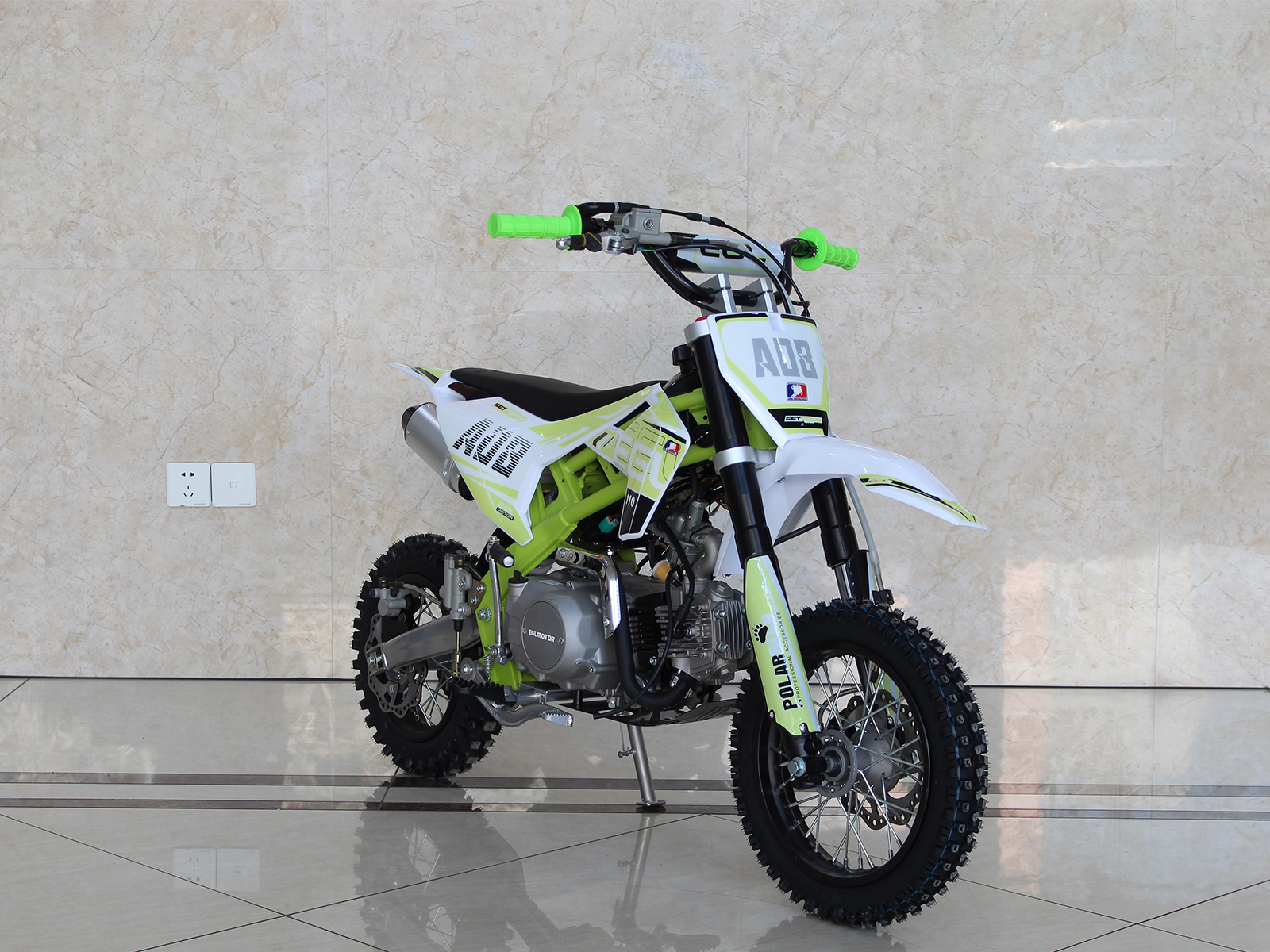

Color Available

Send Us Inquiry

Specification

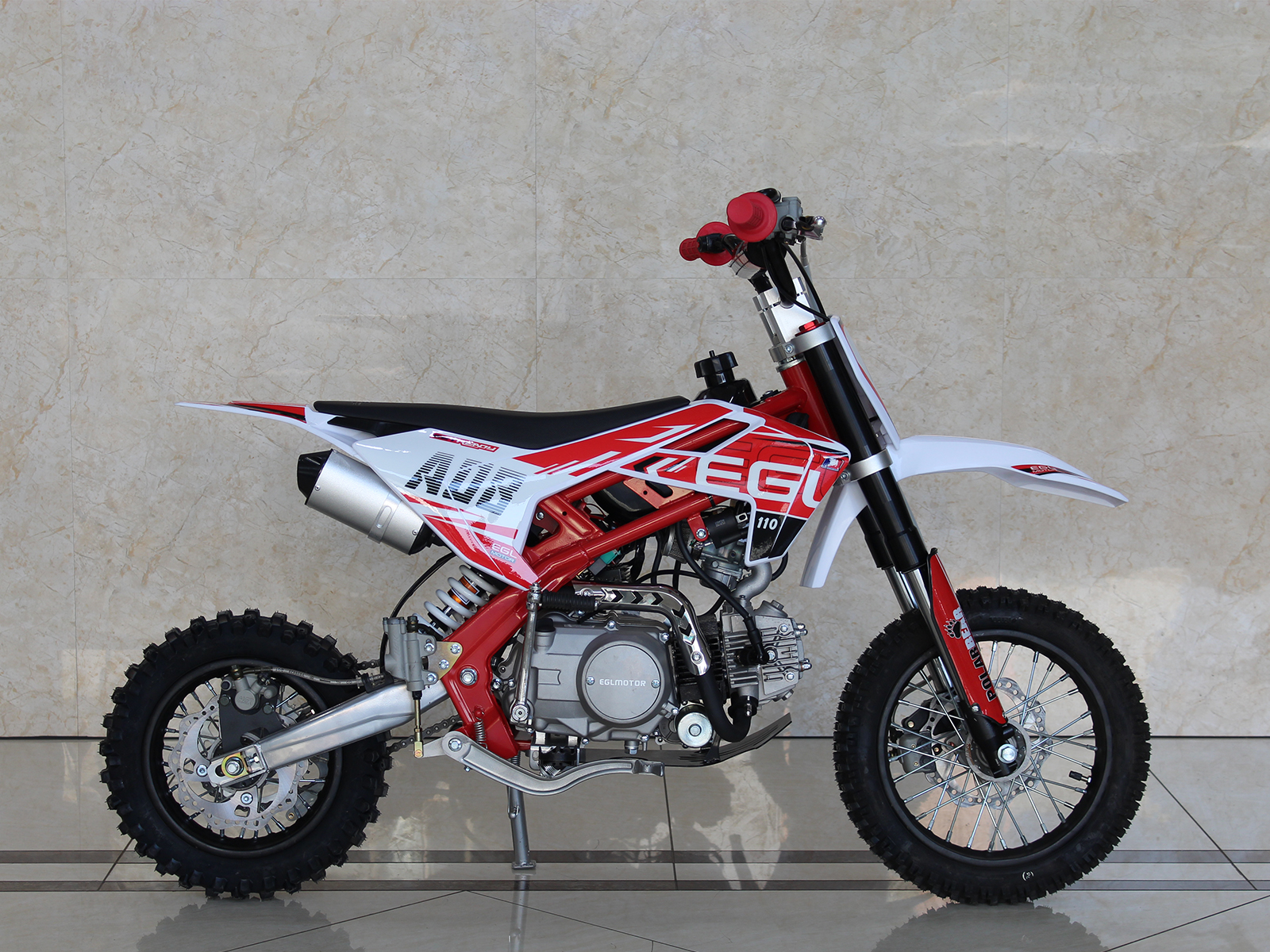

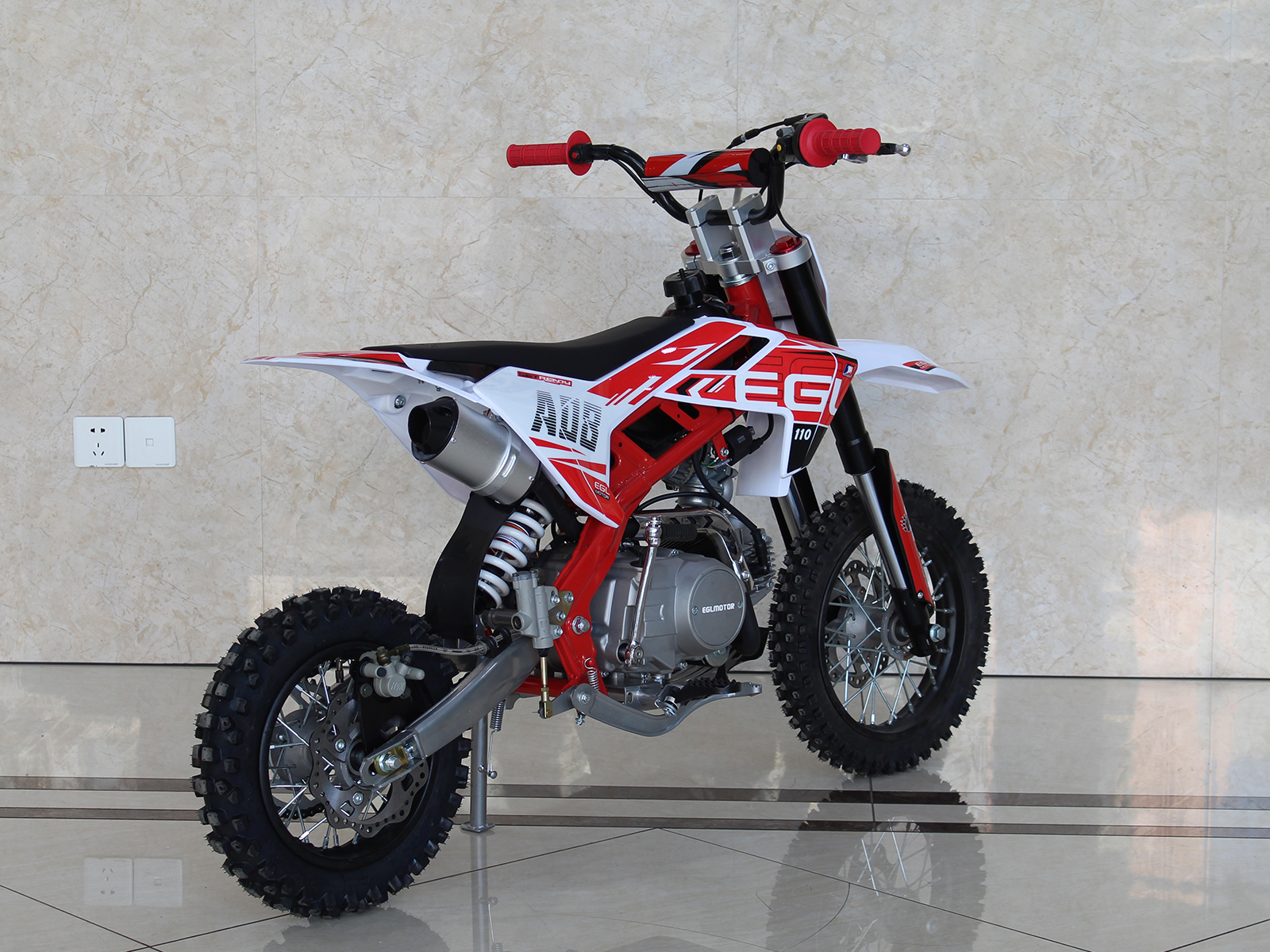

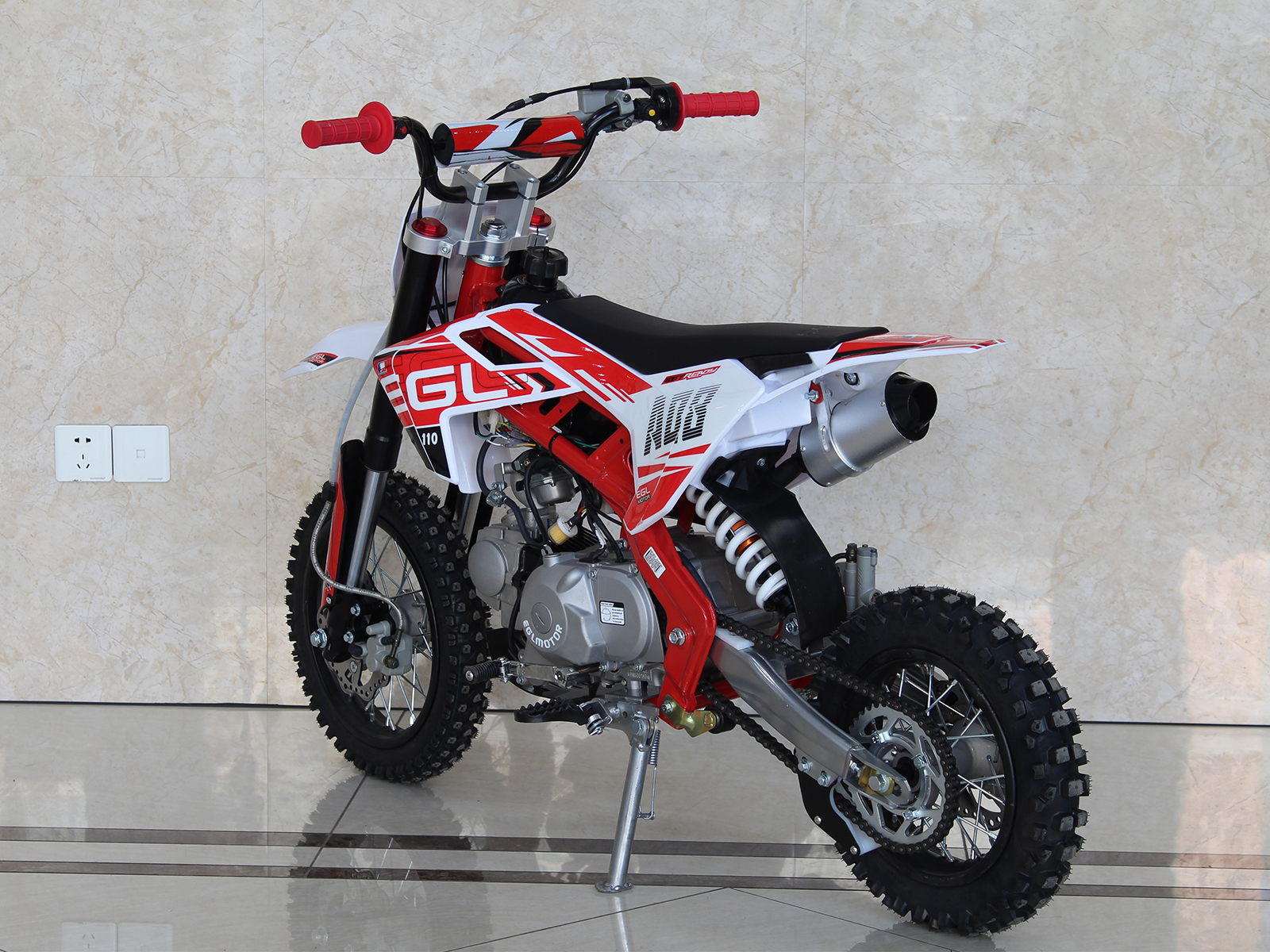

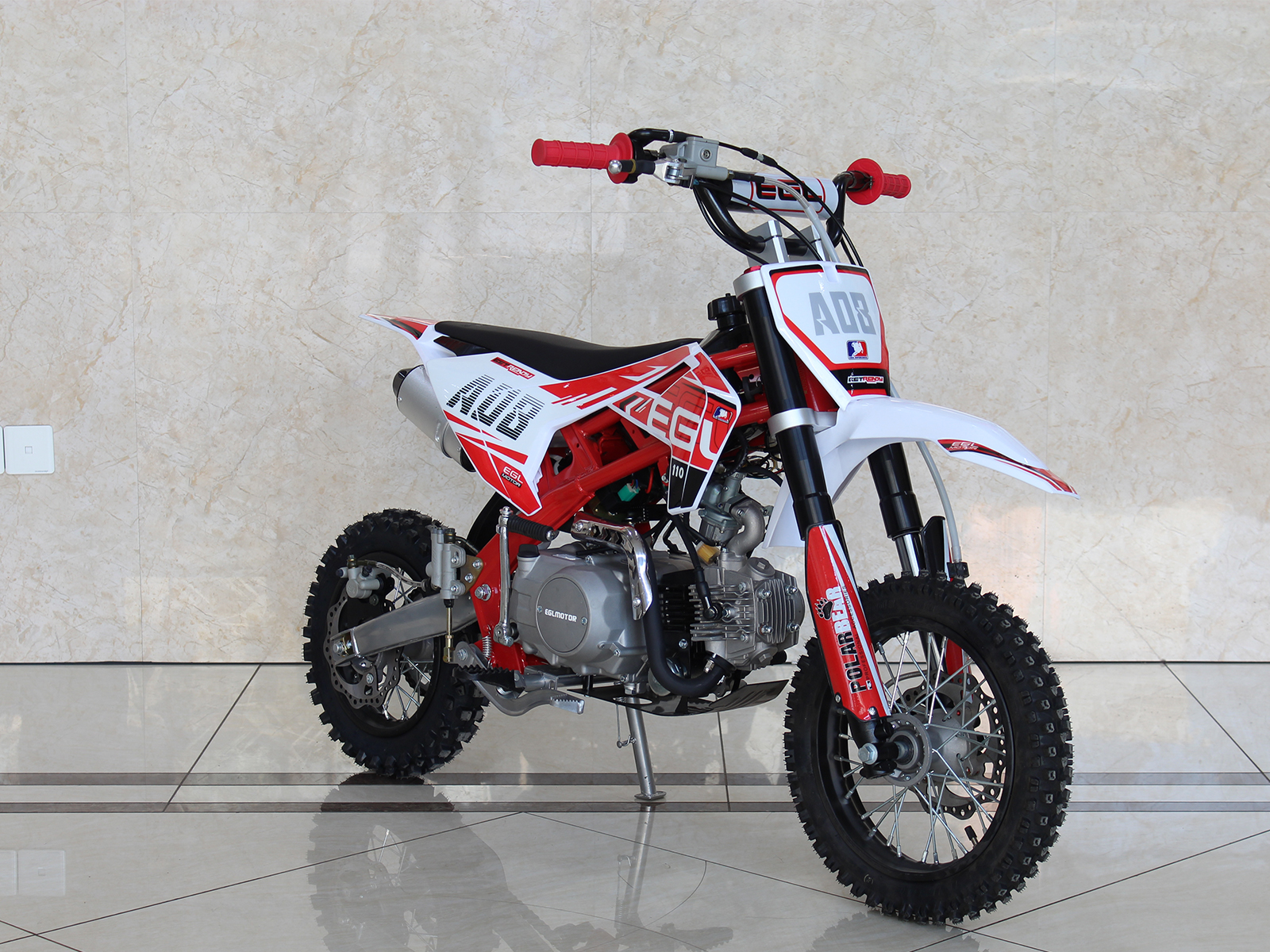

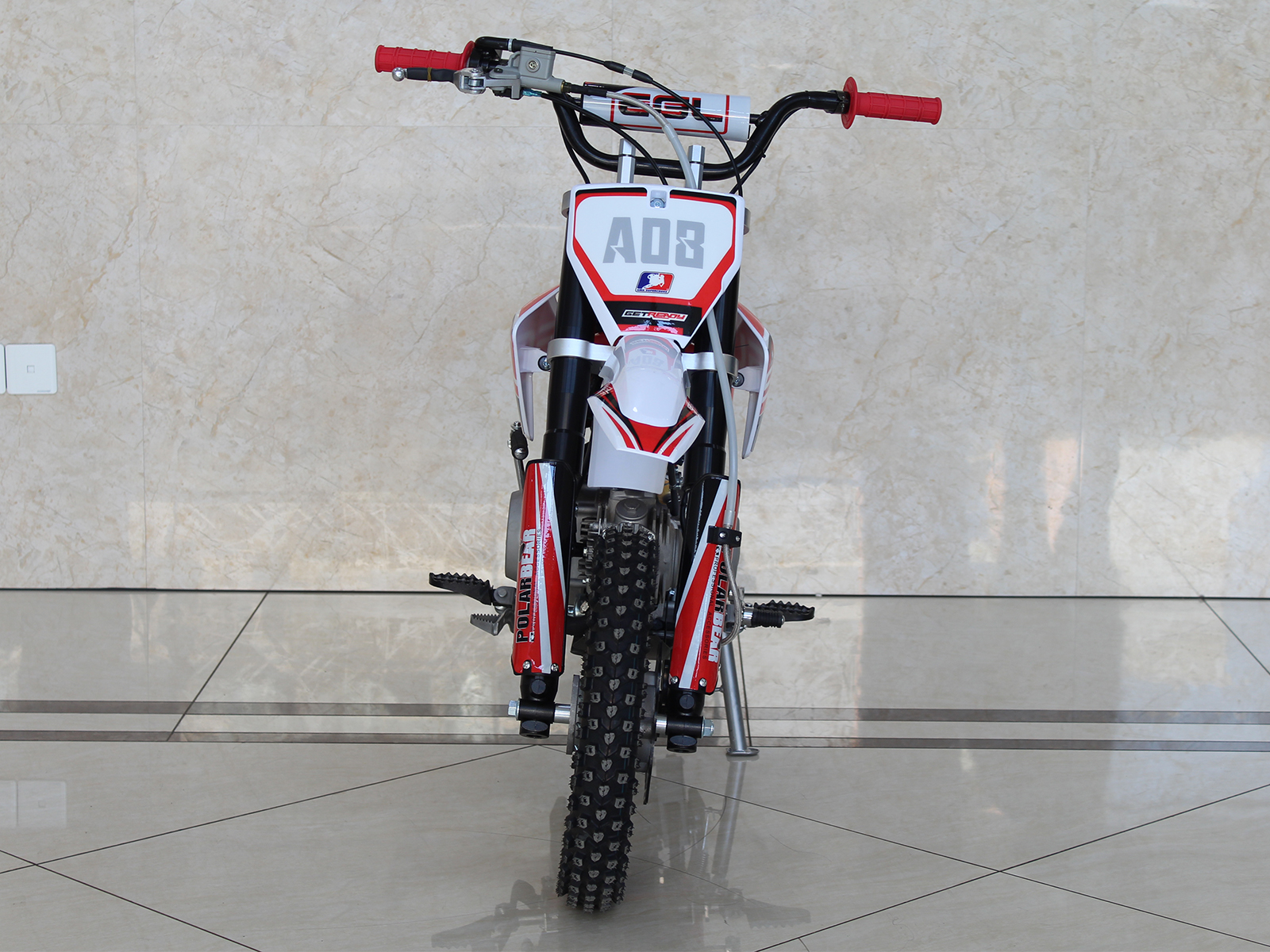

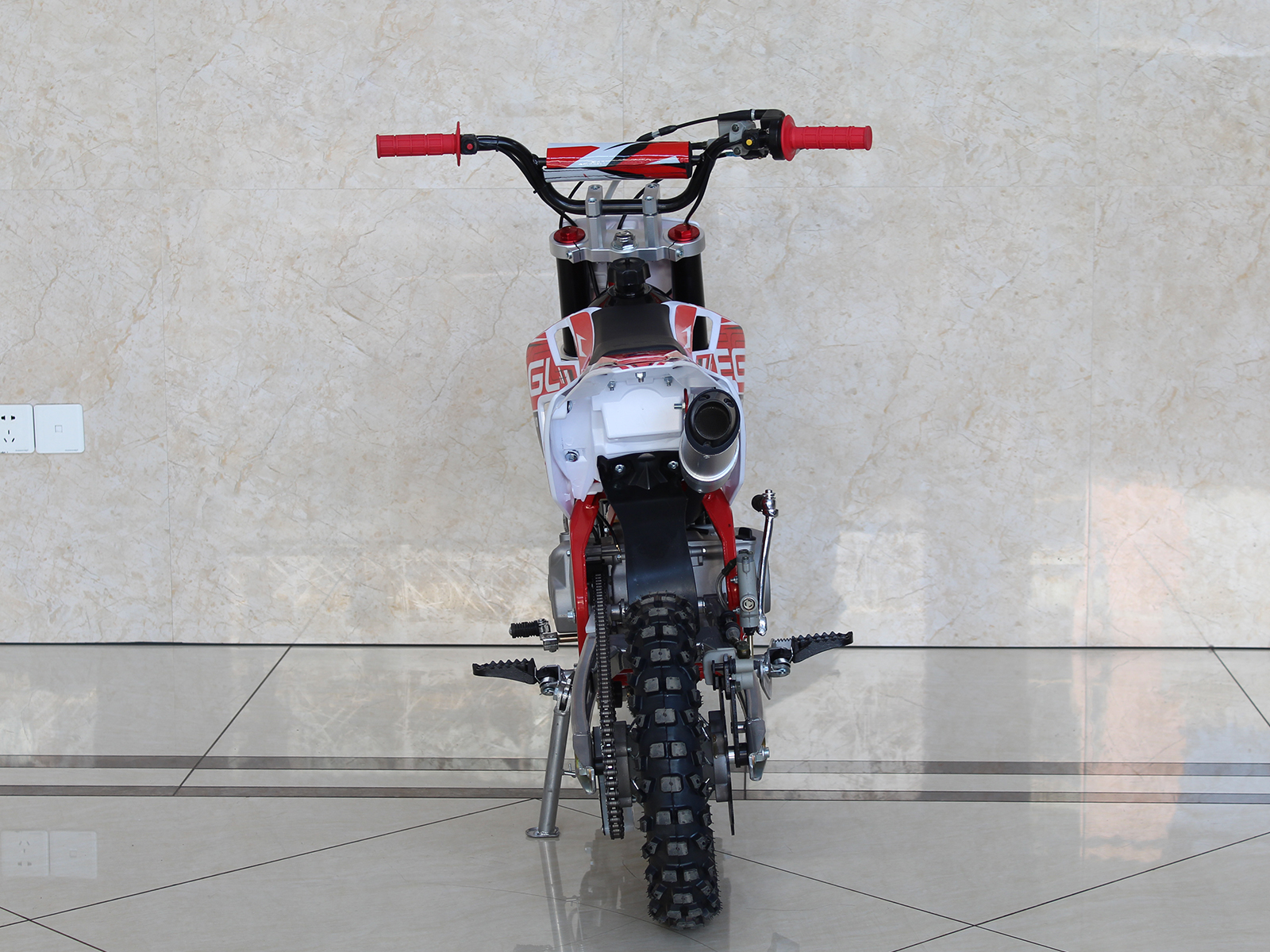

Model A08
Engine type 110cc,  zongshen brand, single cylinder, 4 stroke, air cooled, auto clutch, N-1-2-3-4 Gears
Start Electric&kick start
Battery 12V4Ah lead-acid
Bore x Stroke 52.4*49.5
Compression 9.1:1
Max.power 5.0/8000
Max.torquer 6.7/5500
Ignition mode CDI
Carburetor PZ22
Sprocket front:428-14, rear:428-41
Suspension system front:6300mm, rear:280mm
Brake system front and rear all disc brakes, φ190mm disc
Handle bar steel
Rim Size steel, front:1.4-12 , rear:1.4-10
Tire Size front:2.75-12 , rear:3.00-10
Max. loading 55kg
Tank Capacity 4.5L
Seat Height 650mm
Wheel Base 1020±3mm
Ground Clearance 180mm
Dimensions (L*W*H) 1440mm*660mm*910mm
G.W/N.W 58kg/68kg
Package size 1270*430*620mm
FCL QTY  40HQ:184pcs

Features

【5-Speed Manual Transmission】
Enhances rider control and engagement, as the manual shifting process requires more skill and attention, resulting in a more immersive riding experience.

【12" Front and 110" Rear Big Tires】
Well-suited for off-road adventures, offering improved stability, traction, and performance in demanding conditions.

【Adjustable Rear Mono Shock】
Provides riders with greater flexibility, control, and comfort, making it a popular choice for off-road enthusiasts.

【Some assembly required】
 Assembly for dirt bikes include Handle bar brackets, wheels, brakes, number plate and fender. (May differ per model)
