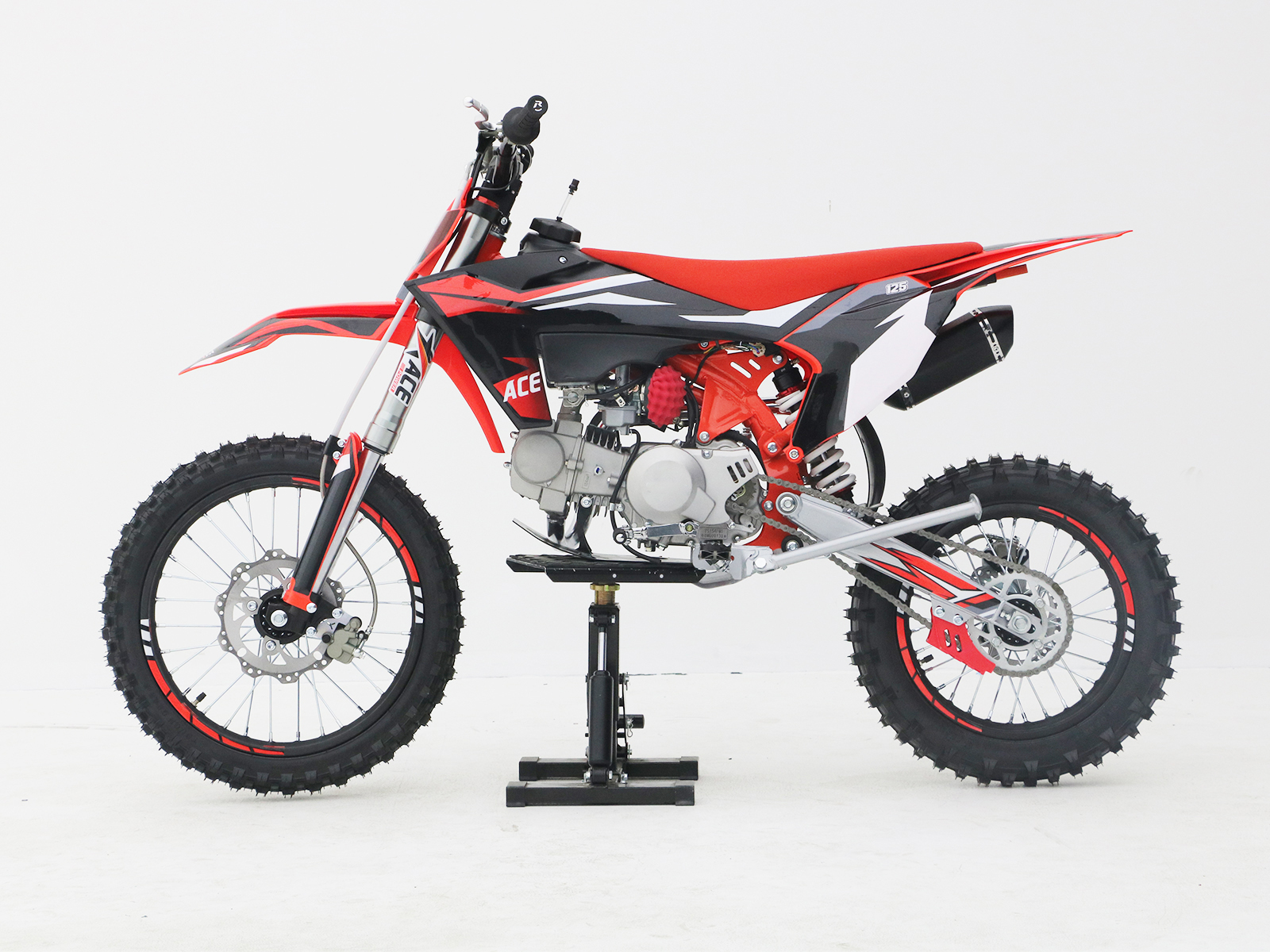

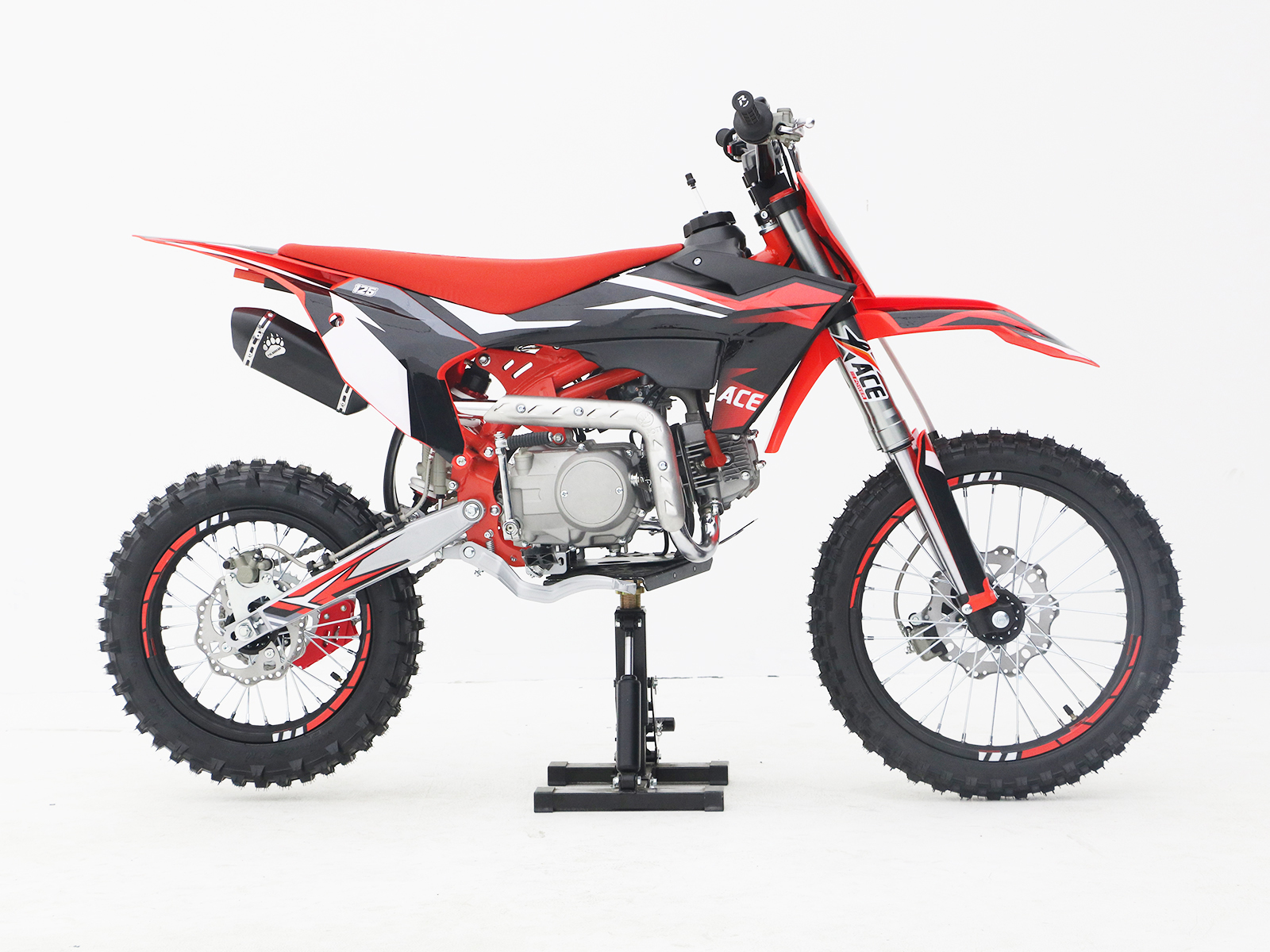

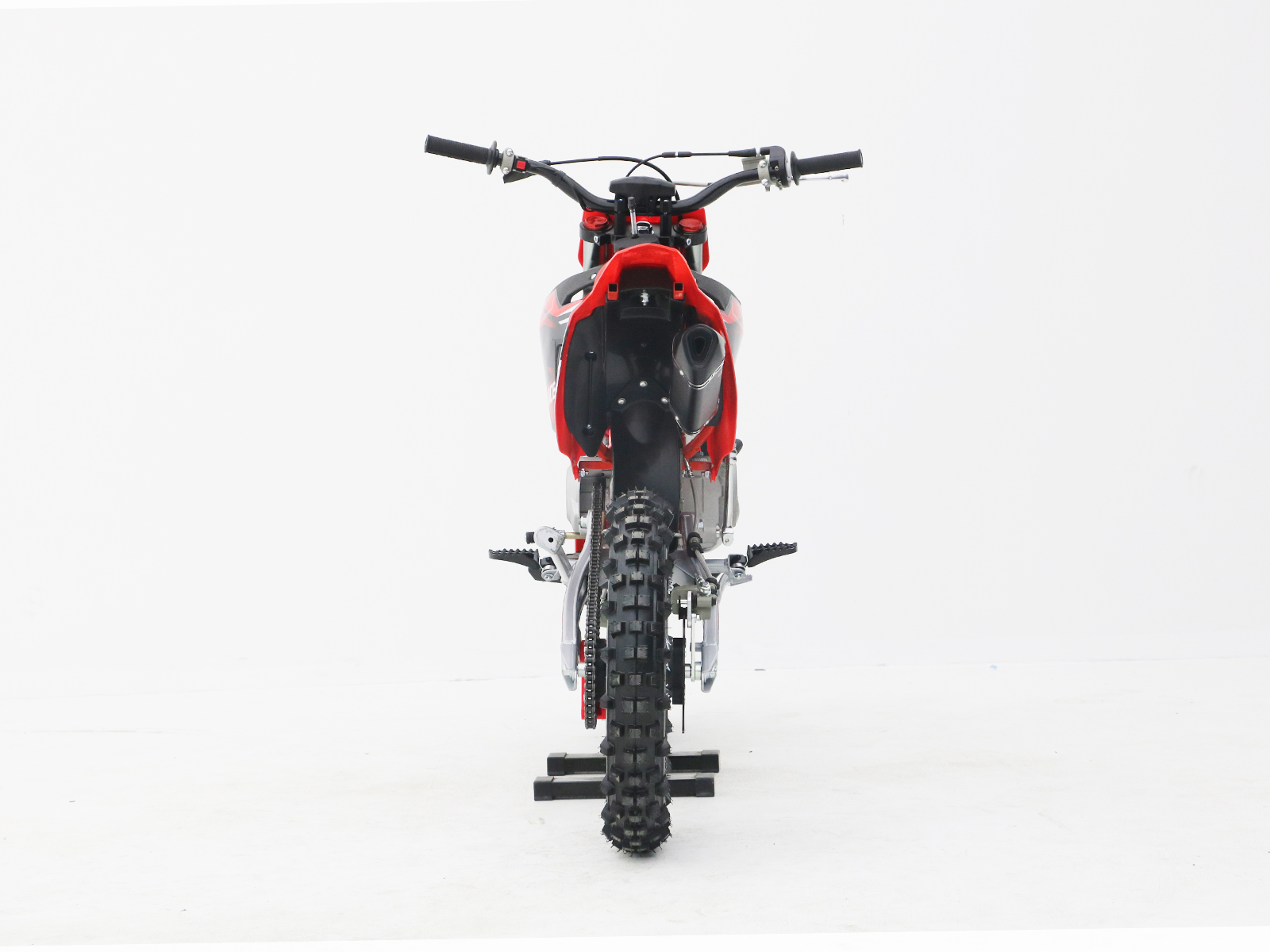

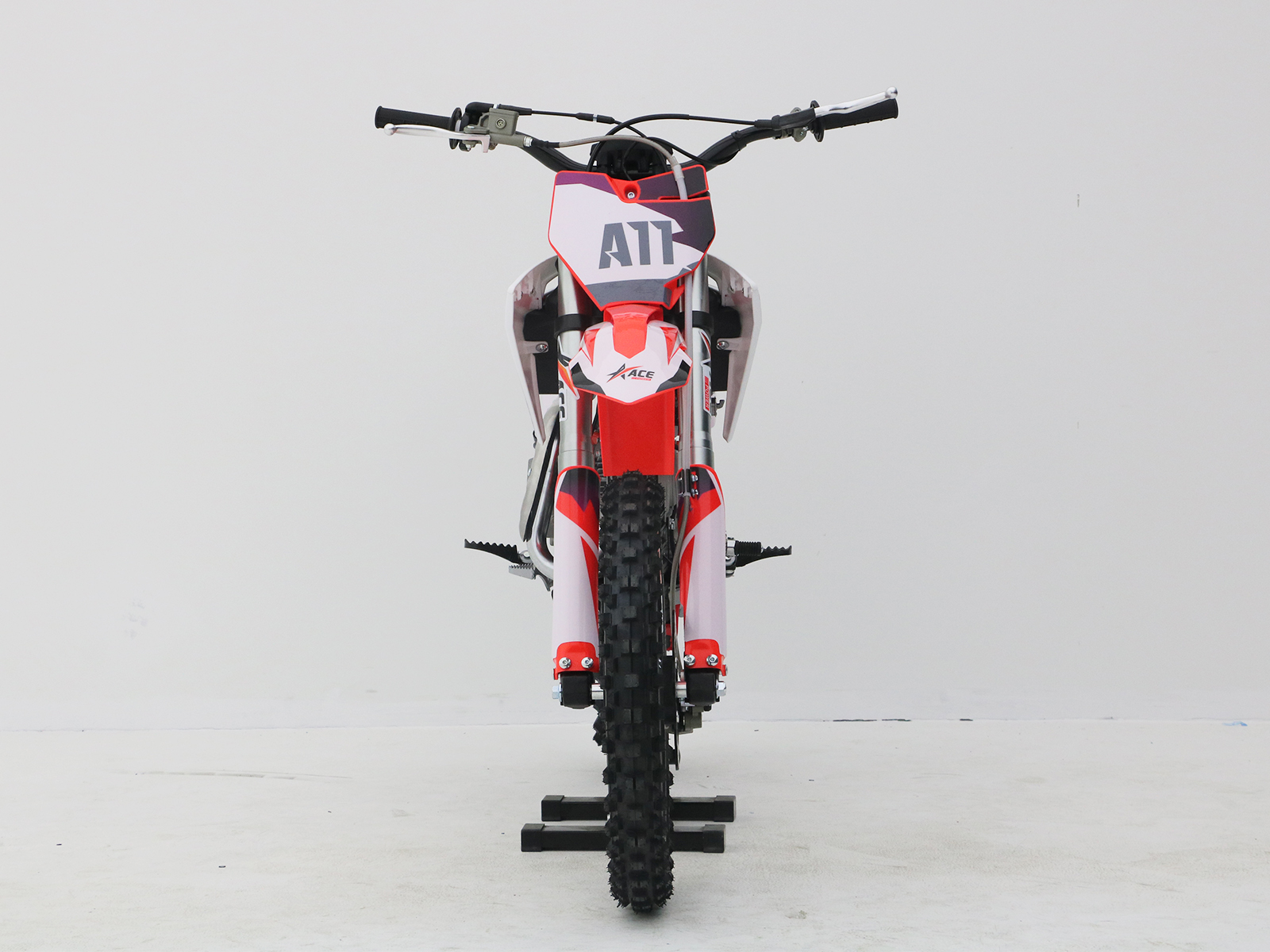

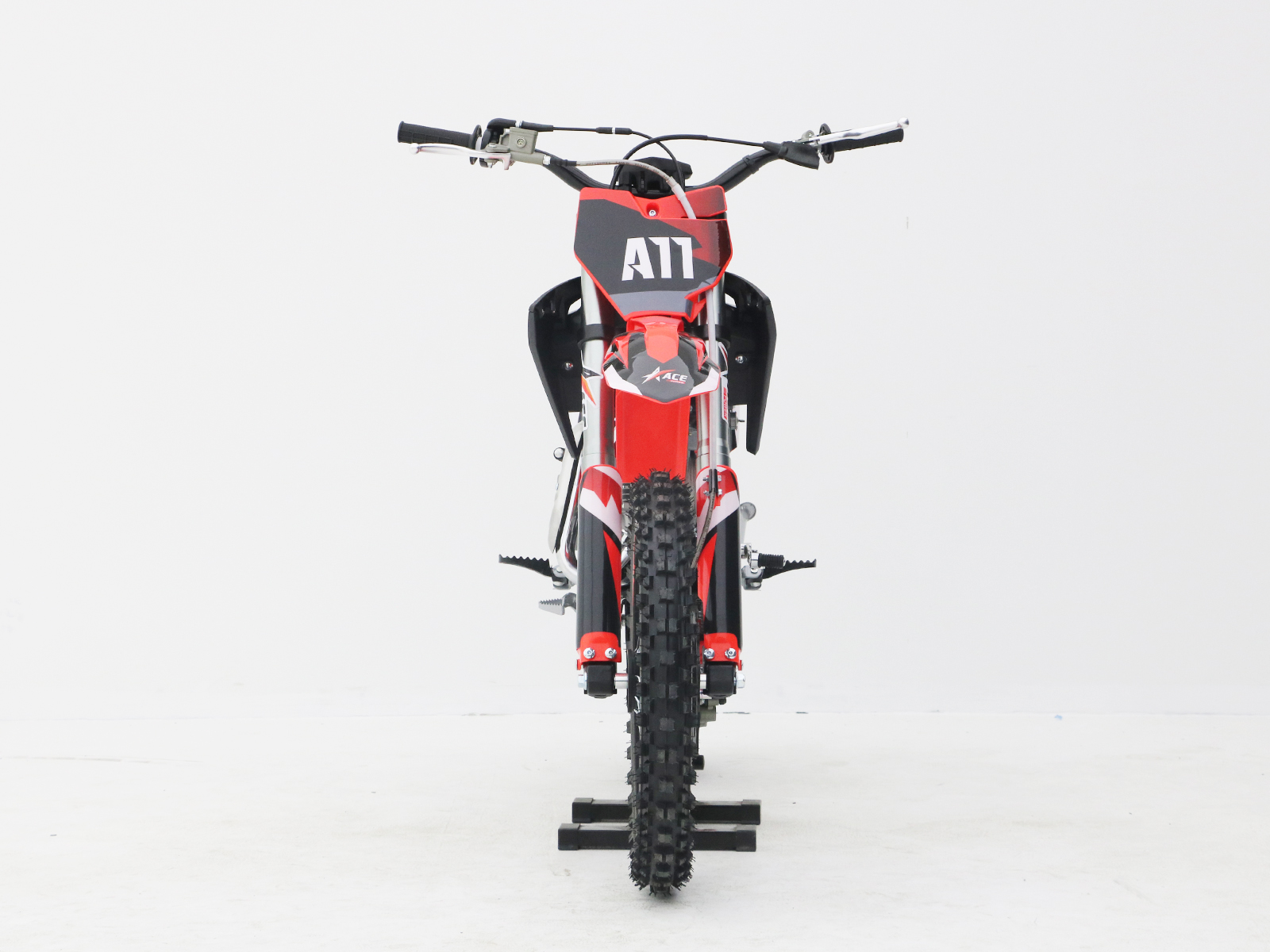

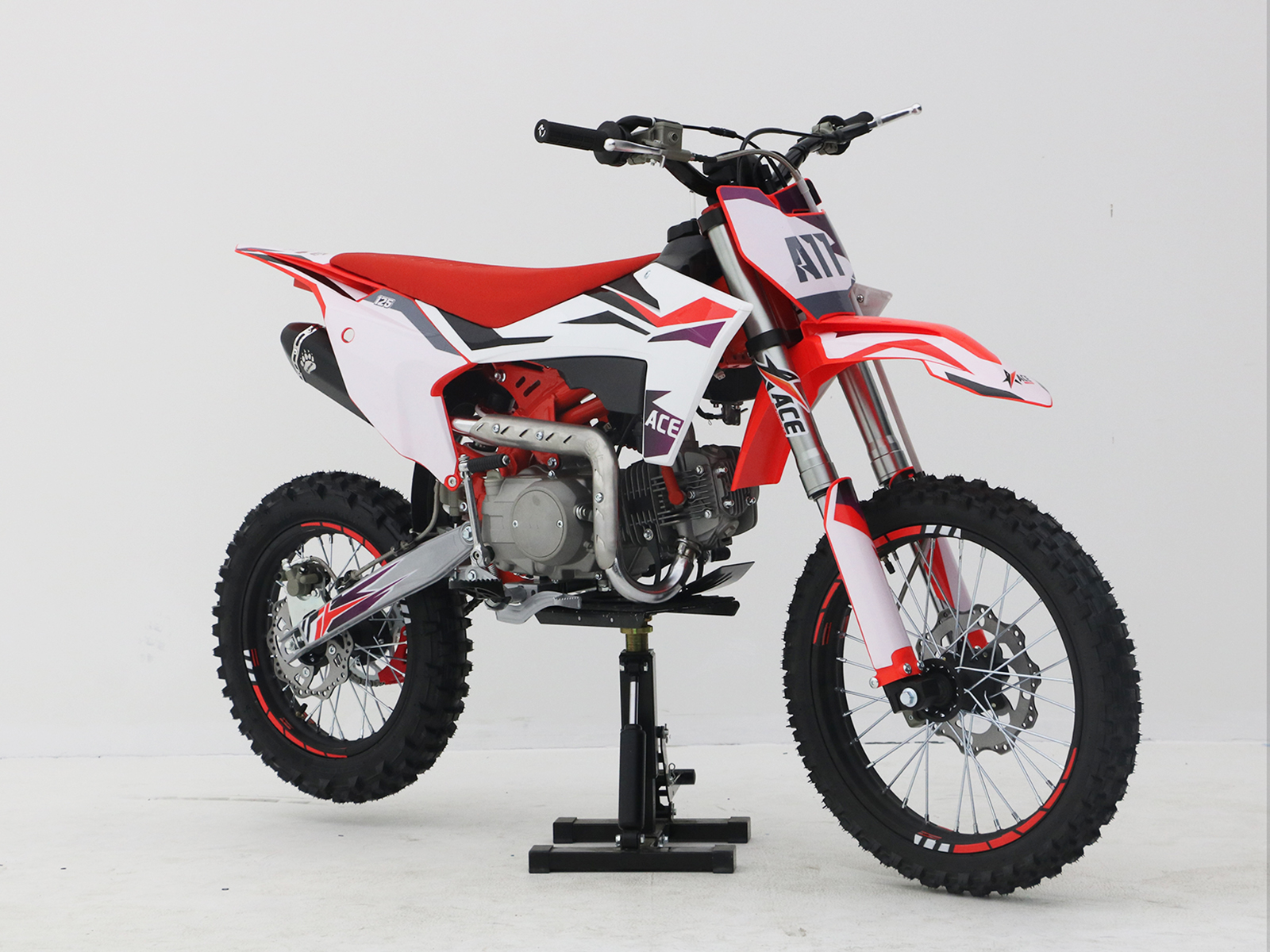

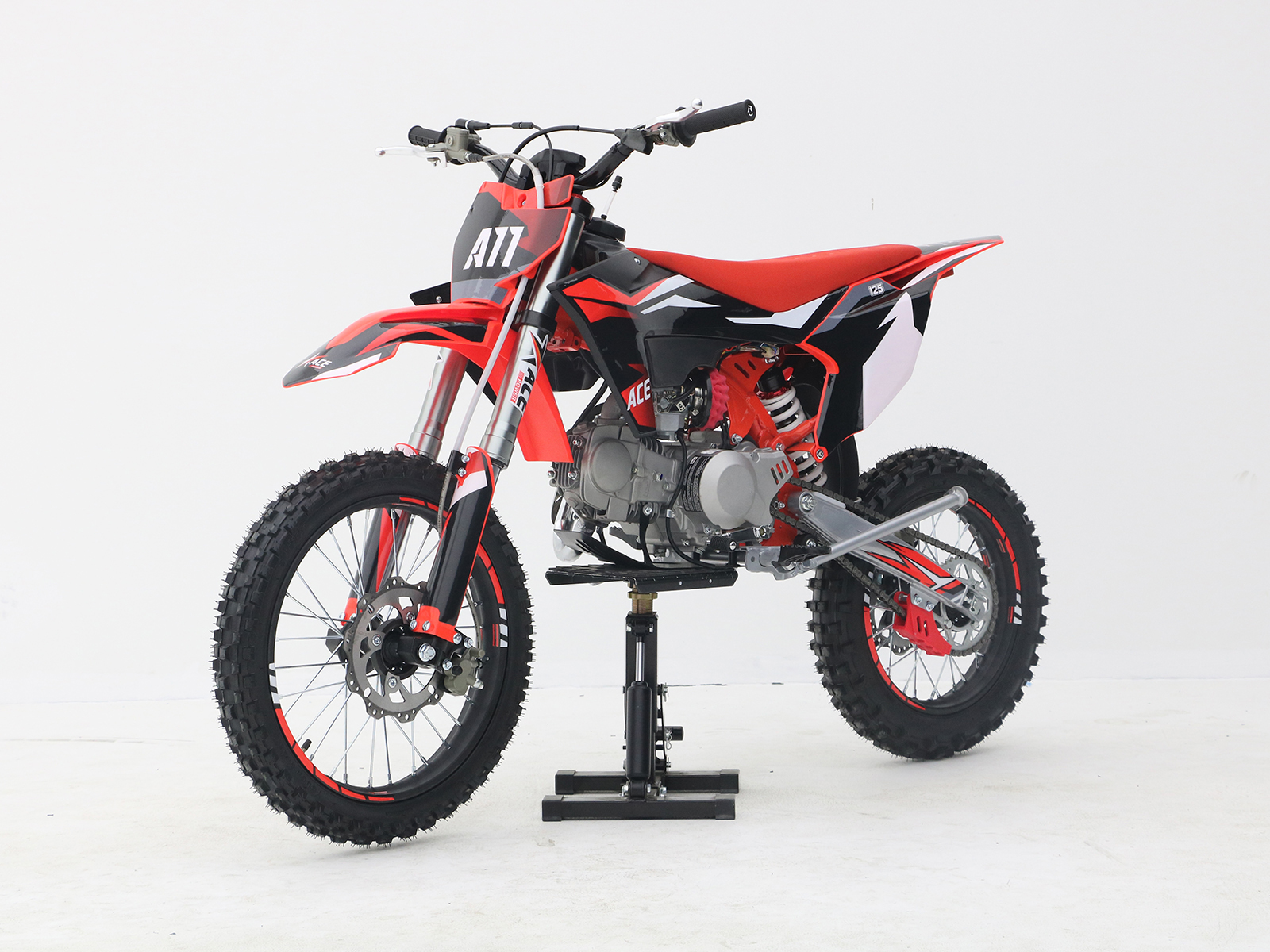

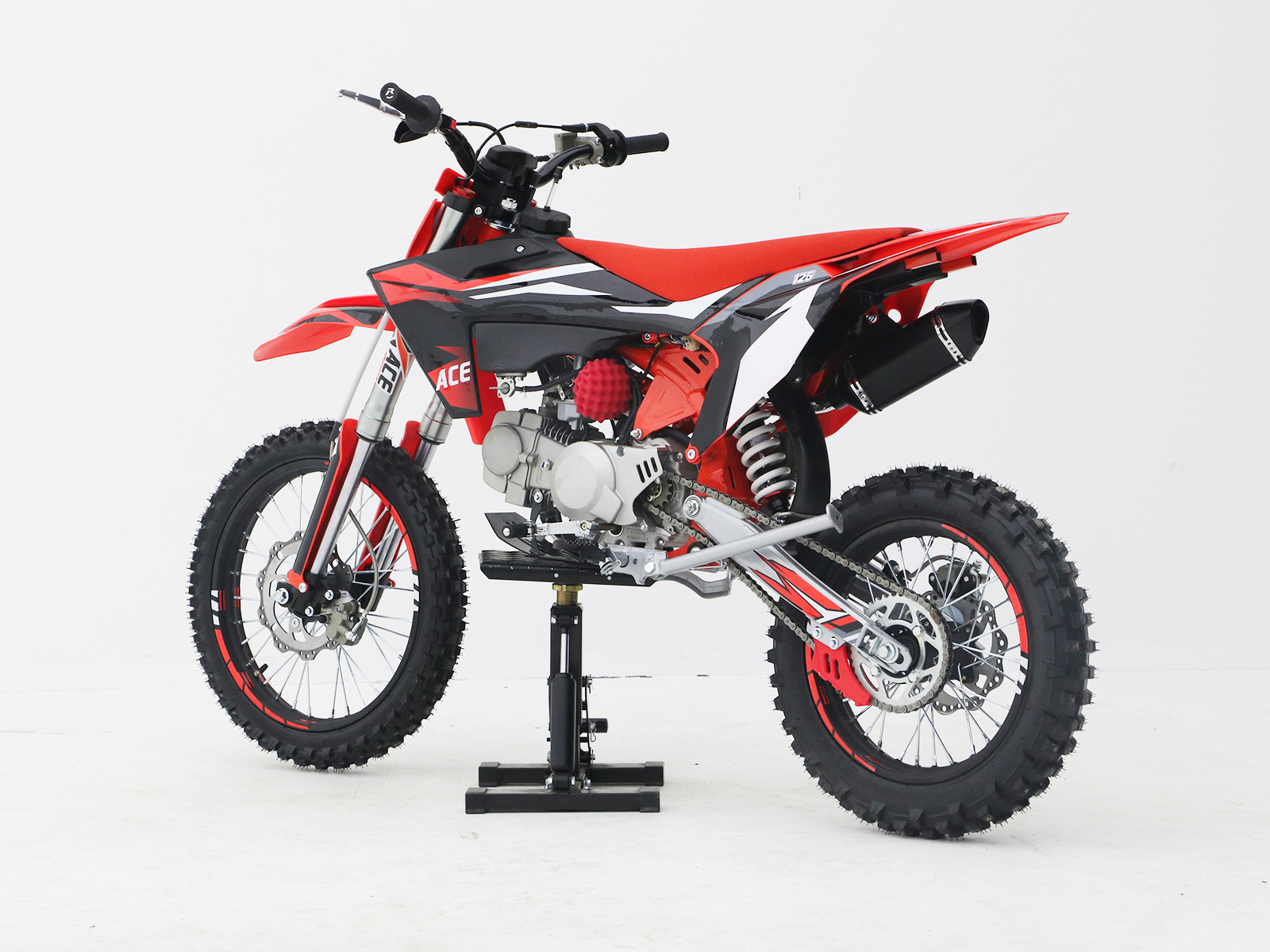

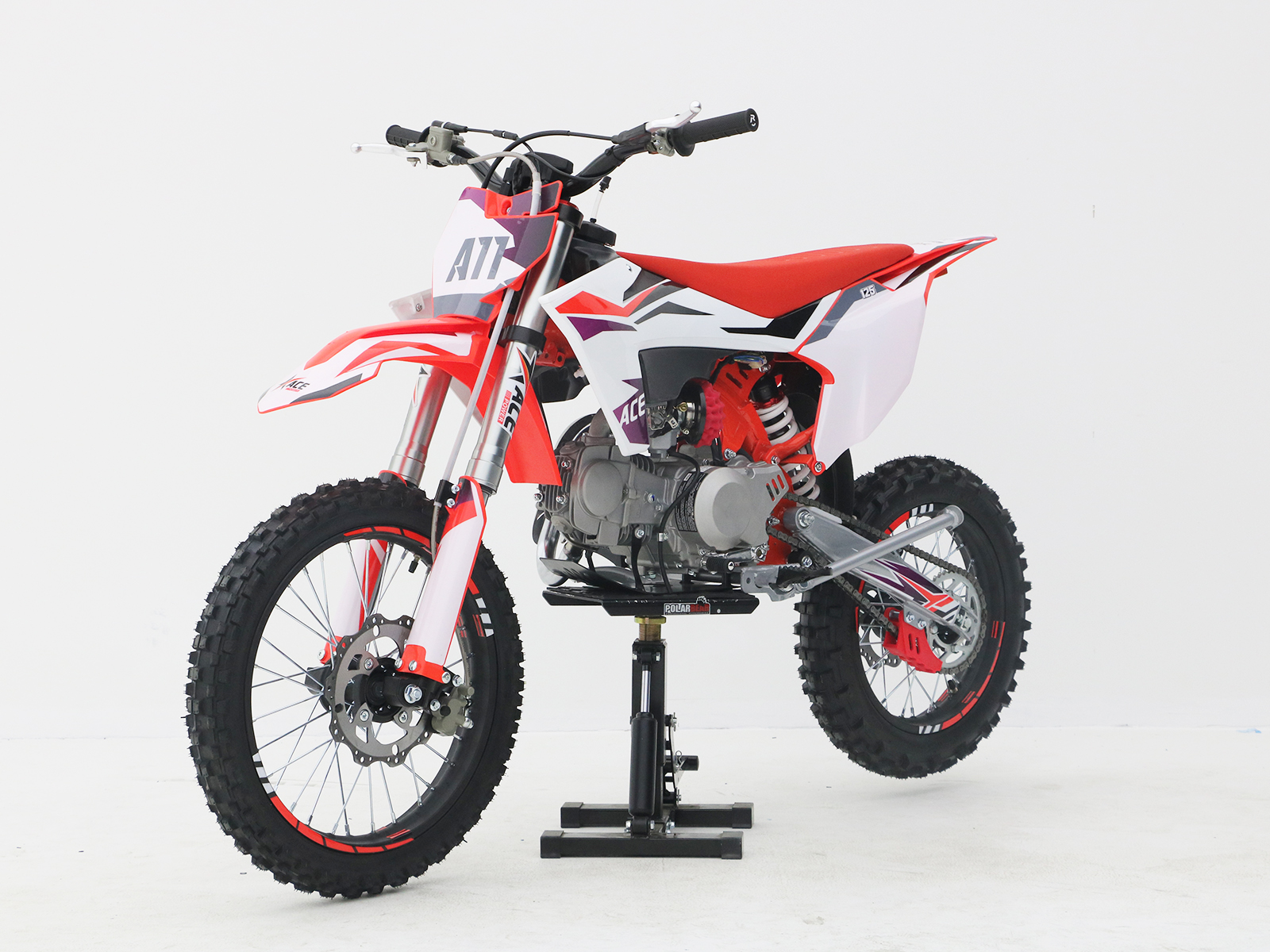

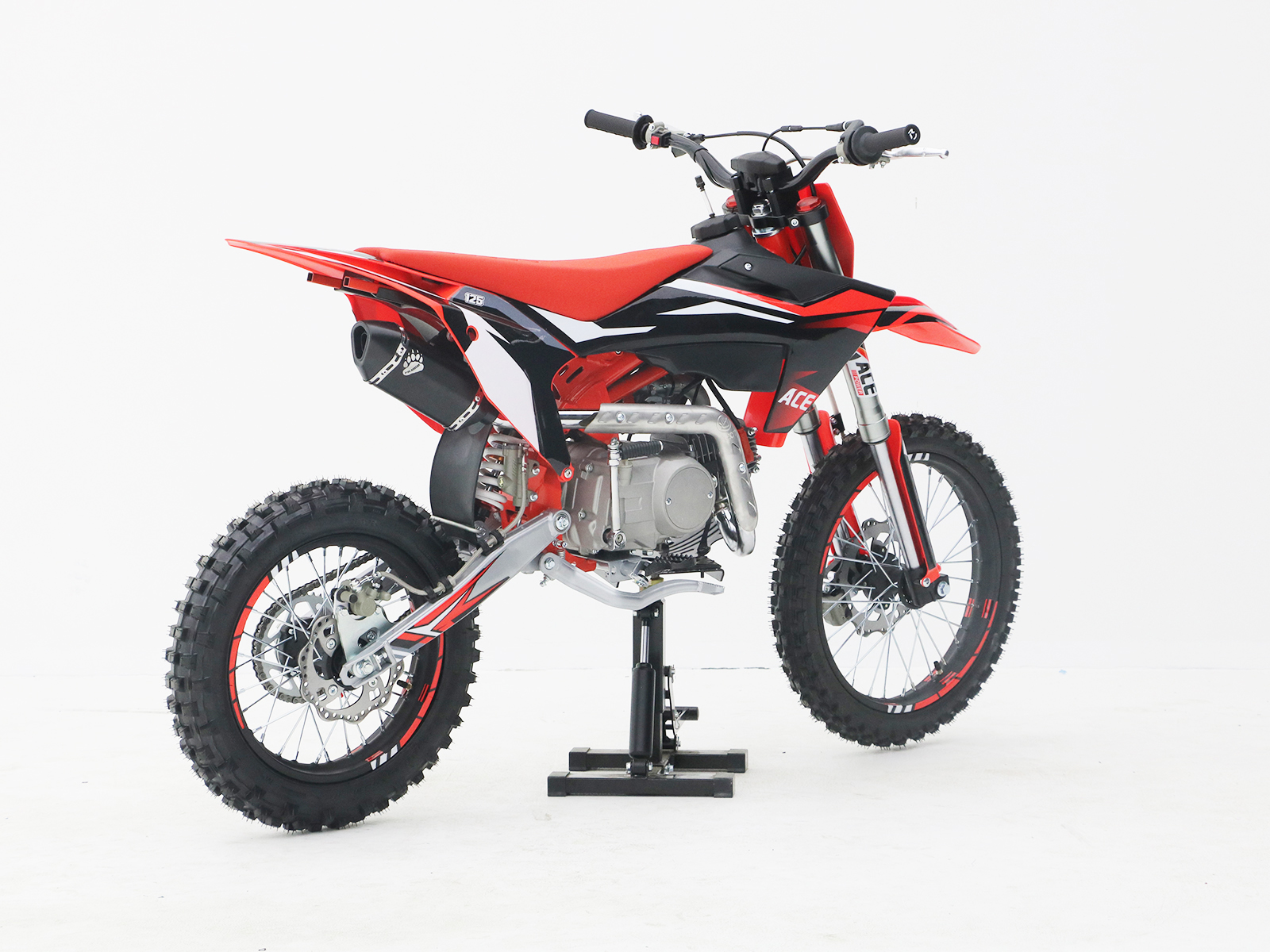

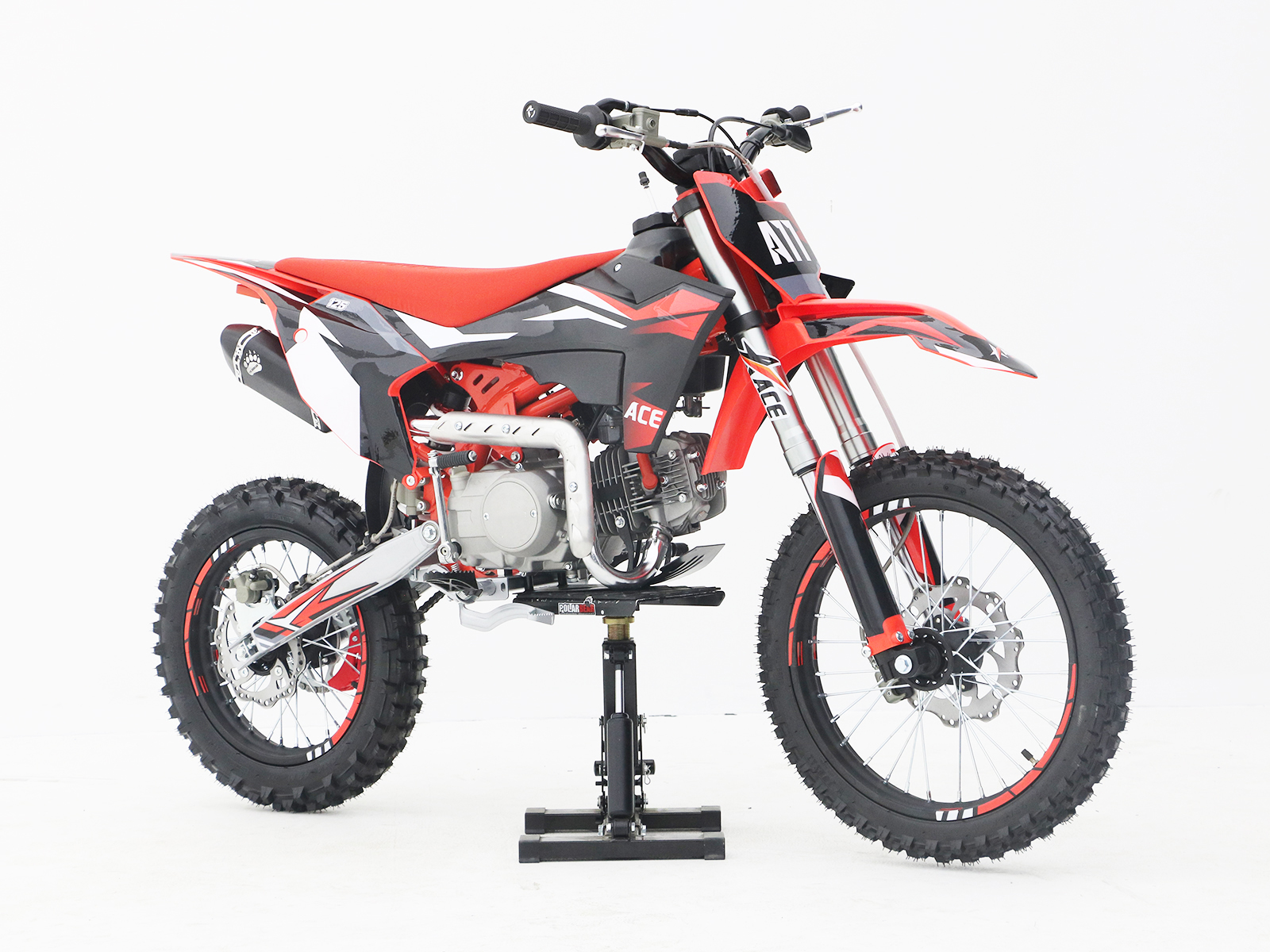

A11(2025)

Color Available

Send Us Inquiry

Specification

Model A11
Engine type 125CC, Zongshen brand, single cylinder, 4 stroke, air cooled, manual clutch, kick start, N-1-2-3-4 Gear
Bore x Stroke 52.4*55.5
Compression 9.6:1
Max.power 5.3/7000
Max.torquer 8.5/5000
Ignition mode CDI
Carburetor PZ26
Sprocket front:428-14, rear:428-41
Frame Steel
Suspension system front:735mm      rear:295mm
Brake system front and rear all disc brakes, φ190mm disc
Handle bar Steel
Rim Size Steel, front:1.6*17, rear:1.85*14
Tire Size front:70/100-17, rear:90/100-14
Max. loading 65kg
Tank Capacity 4.5L
Seat Height 810mm
Wheel Base 1220±3mm
Ground Clearance 350mm
Dimensions (L*W*H) 1770mm*760mm*1080mm
G.W/N.W 65kg/75kg
Package size 1500*430*770mm
FCL QTY  40HQ:114pcs

Features

【5-Speed Manual Transmission】
Enhances rider control and engagement, as the manual shifting process requires more skill and attention, resulting in a more immersive riding experience.

【17" Front and 14" Rear big Tires】
Well-suited for off-road adventures, offering improved stability, traction, and performance in demanding conditions.

【Adjustable Rear Mono Shock】
Provides riders with greater flexibility, control, and comfort, making it a popular choice for off-road enthusiasts.

【Some assembly required】
 Assembly for dirt bikes include Handle bar brackets, wheels, brakes, number plate and fender. (May differ per model)
